The AL-KO ATC 1 2.0 Full Kit 1300-1600kg TA is a complete electronic trailer stability control system designed to enhance the safety of towing for caravans with a tandem axle and gross weight between 1300 kg and 1600 kg. Using sensors monitoring lateral movement on the caravan axle, the system automatically detects and counters dangerous swaying (snaking) by gently applying the caravan’s brakes before instability becomes critical — much like electronic stability control (ESC) in modern cars.

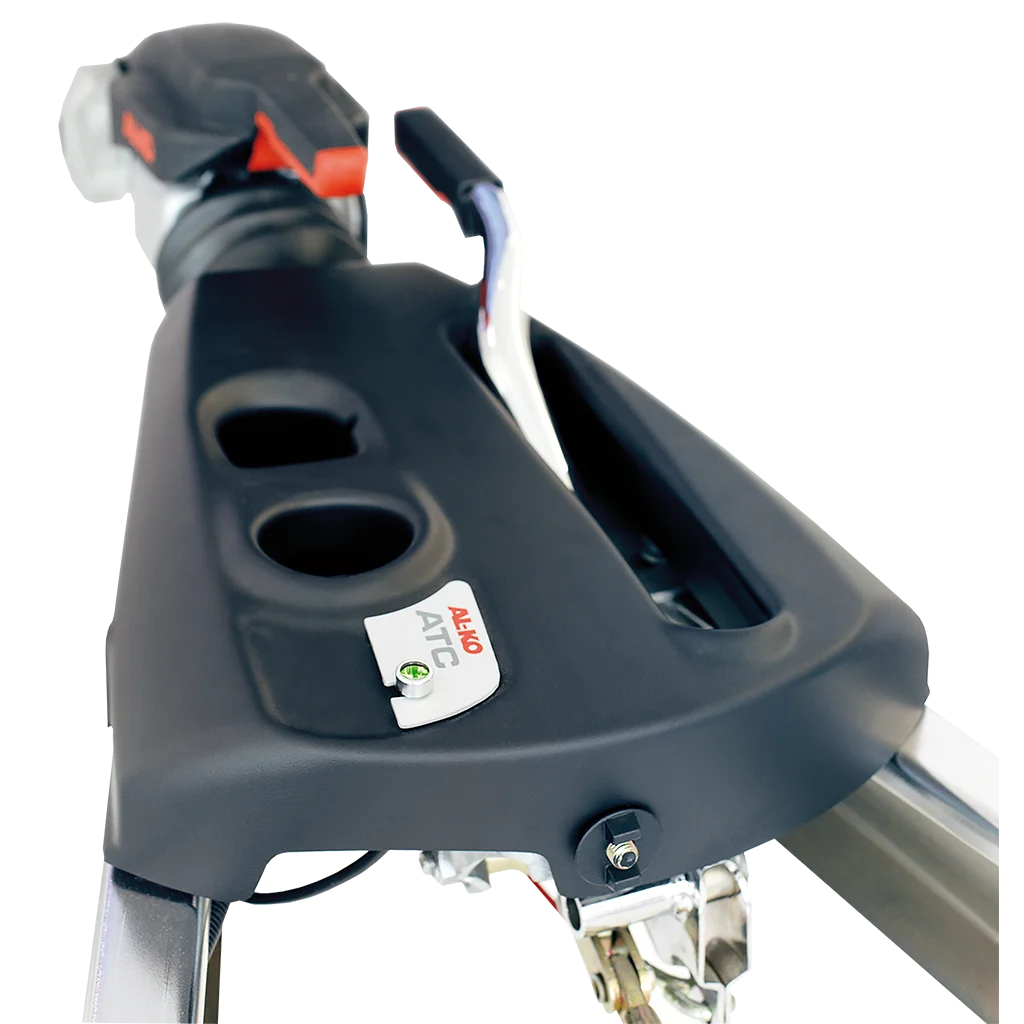

Ideal for caravanners of Bailey, Lunar, Coachman, Vanmaster and similar tandem-axle tourers, this full kit provides a retrofit anti-snake solution when your caravan did not come with ATC from the factory. It connects to the caravan junction box and performs a self-check at start-up, indicated by a green LED on the overrun device.

🔑 Key Features & Benefits

• 🛡️ Electronic Anti-Snake Control: Constantly monitors caravan lateral dynamics and intervenes when necessary to reduce sway and improve road safety.

• 🚐 Tandem Axle Design: Specifically calibrated for caravans with a tandem axle and gross vehicle weight range of 1300–1600 kg.

• ⚖️ Gentle Automatic Braking: The system automatically applies caravan brakes through Bowden cables when dangerous oscillations are detected, bringing the outfit back in line with minimal driver intervention.

• 🔌 Plug-In Power & Self-Test: Powered via the caravan’s junction box; automatically runs a self-check at power-up with a status LED to confirm readiness.

• 🔧 Retrofit Capability: Ideal for caravans built since 1998 with AL-KO chassis — can be installed by AL-KO retailers and specialist fitters.

• 🧠 Improves Towing Confidence: Works earlier and more directly than many vehicle ESC systems by sensing movement at the caravan axle.

📦 What’s Included

While exact contents can vary by supplier, most full kits will include:

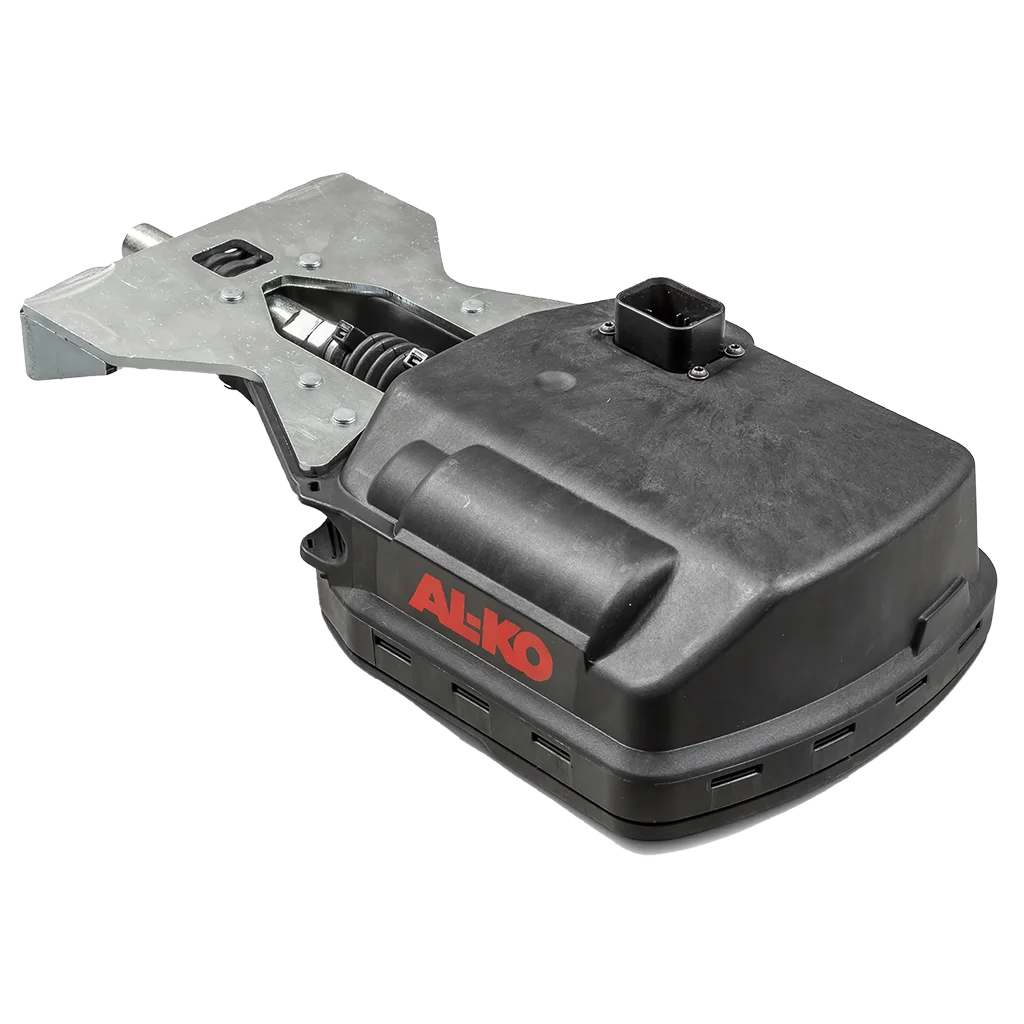

• ATC control unit for 1300-1600 kg tandem-axle caravans

• Lateral motion sensor and wiring harness

• Brake actuation hardware (for caravan drum brakes)

• LED status indicator / overrun connection interface

• Installation instructions

Installation should be carried out by a competent technician or authorised fitter familiar with AL-KO ATC systems.

🛠 How It Works

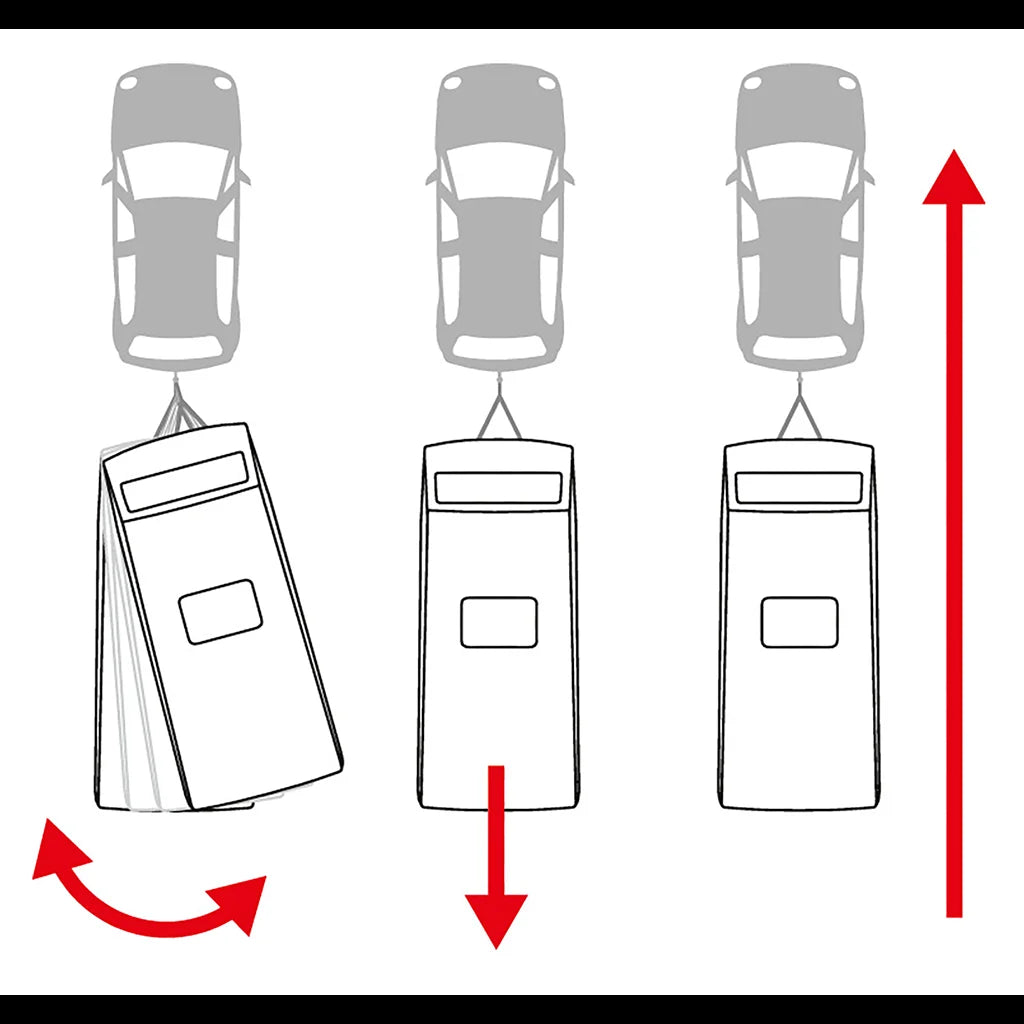

The ATC system continuously monitors the caravan’s lateral acceleration using a sensor mounted near the axle. If swaying motion exceeds safe thresholds, the system gently applies the caravan’s brakes through mechanical linkages — slowing the outfit and bringing the caravan back into a stable alignment behind the towing vehicle. It performs this seamlessly, and brake lights usually do not illuminate during ATC-initiated braking, as the intervention mimics a stabilising brake action rather than a full stop

Caravan snaking — where the trailer begins to sway side-to-side — can compromise control and lead to dangerous situations, especially at higher speeds, in crosswinds or during overtaking. While mechanical stabiliser couplings help reduce minor sway, they cannot respond dynamically. The ATC electronic system adds a smart layer of safety by detecting and correcting serious instabilities before they escalate, giving drivers greater confidence and peace of mind on long journeys or in unpredictable conditions.

📍 Installation & Use Tips

• Ensure your caravan’s chassis is compatible with ATC and built with AL-KO components.

• Have the system installed and tested by an authorised fitter for proper calibration and safety certification.

• Regularly check power and LED status before setting off to confirm the system is operational.
