AL‑KO ATC 2.0 Swift Retro Kit TA 1300‑1600kg – Caravan Anti-Snake Trailer Stabilisation System

AL‑KO ATC 2.0 Swift Retro Kit TA 1300‑1600kg – Caravan Anti-Snake Trailer Stabilisation System

The AL-KO ATC 2.0 Swift Retro Kit TA 1300-1600 kg is a genuine AL-KO anti-snaking electronic stability control system designed to be retro-fitted to caravans with a tandem axle and gross weight between 1300 kg and 1600 kg. It continuously monitors lateral movements of the caravan using sensors and automatically applies the caravan’s brakes gently if it detects dangerous sway, helping to bring the outfit back into line and improve towing stability — similar to how ESP (electronic stability control) works on cars.

This system is particularly valuable on long journeys, in gusty crosswinds, or during sudden manoeuvres where snaking could otherwise lead to loss of control. Once installed, the ATC 2.0 is powered via the caravan junction box and performs a self-check before every trip.

🔑 Key Features & Benefits

• ⚖️ Enhanced Towing Safety: Gently applies caravan wheel brakes when lateral sway exceeds safe thresholds, stabilising the outfit.

• 🌐 Electronic Anti-Snake Control: Similar to ESP systems in cars — continuously monitors and reacts to sway.

• 📊 Suitable for Tandem Axle Caravans: Specifically designed for AL-KO tandem chassis with 1300-1600 kg gross weight range.

• 🔌 Retro-Fit Upgrade: Allows caravanners whose vehicles don’t already have ATC to add this advanced safety component.

• 💡 Self-Testing & Status LED: Self-checks on connection with power via the junction box; status often indicated by an LED.

• ⚠️ No Maintenance Required: Once installed, ATC 2.0 typically requires no ongoing maintenance.

• 🚐 Better Response than Some Vehicle ESP: Detects and corrects sway earlier than many in-car systems due to direct caravan axle sensing.

📦 What’s Included

When you purchase this ATC 2.0 Swift Retro Kit, it generally includes:

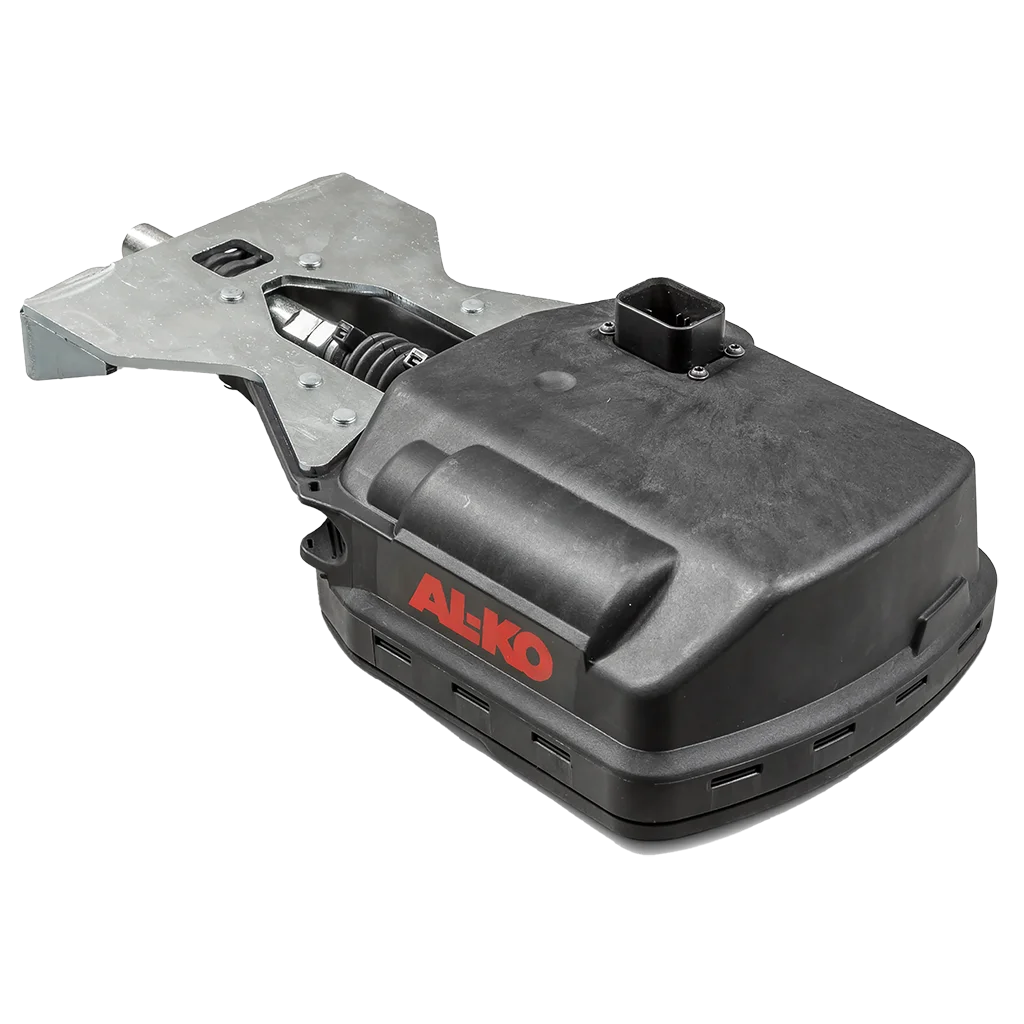

• ATC control unit designed for caravans in the 1300-1600 kg range

• Lateral acceleration sensor and wiring harness

• Brake actuation hardware

• LED status indicator

• Installation instructions

🛠 How It Works

The ATC 2.0 system uses a lateral acceleration sensor mounted on the caravan axle to measure side-to-side movement. If the caravan begins to sway beyond a set tolerance (such as from gusting winds or sharp steering inputs), the system automatically applies the caravan’s brakes via Bowden cables. This braking action pulls the outfit back into alignment before the situation becomes dangerous — improving driver confidence and overall safety
