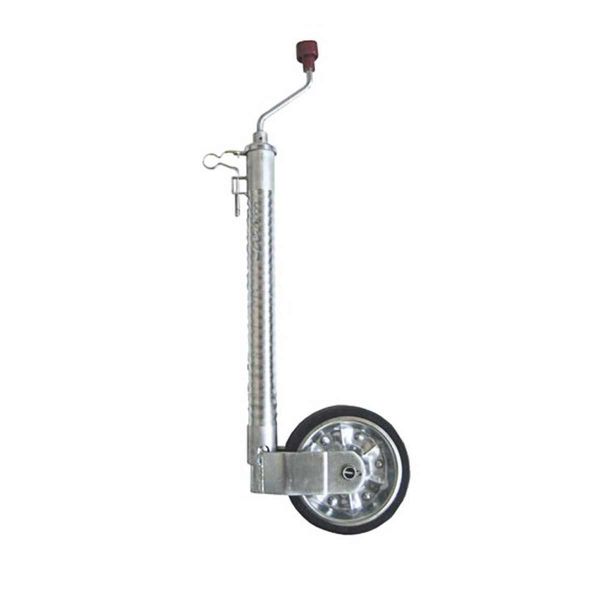

AL-KO Ribbed Jockey Wheel (48mm Shaft, 200 x 50mm Wheel, 300kg Max.) - 1223614

AL-KO Ribbed Jockey Wheel (48mm Shaft, 200 x 50mm Wheel, 300kg Max.) - 1223614

The AL-KO ribbed jockey wheel features a 48mm anti-slip shaft and a solid 200 x 50mm rubber wheel with a durable steel rim. Designed for ease of use, it includes a long, ergonomic design and a built-in thrust bearing under the crank for smooth operation.

This robust jockey wheel supports a maximum stationary nose weight of 300kg and a nose weight of up to 180kg when maneuvering. The electrogalvanized (8 μm) finish provides excellent corrosion protection for long-term durability.

Key features include a fluted outer tube to prevent slipping, and the anti-slip mechanism keeps the crank secure under road vibrations. The wire bracket on the outer tube can be hooked onto the crank to prevent the inner tube from slipping out.

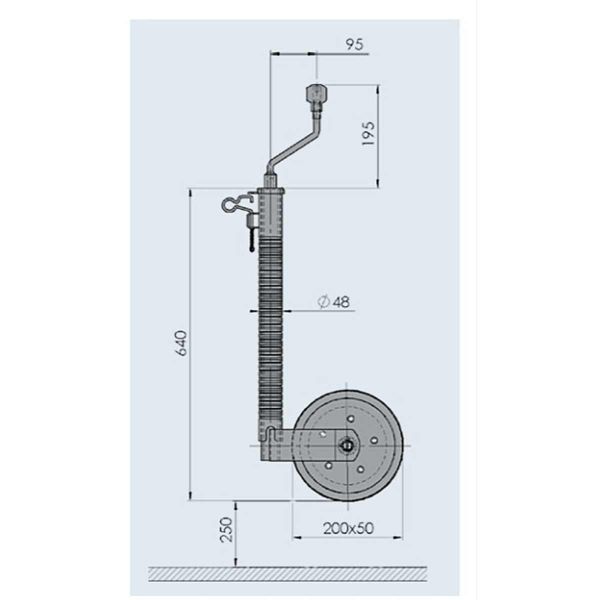

Specifications:

• Stationary Nose Weight: 300kg
• Nose Weight (Manoeuvring): 180kg
• Wheel: 200 x 50mm solid rubber
• Wheel Rim: Steel
• Extended Length: 250mm
• Weight: 8kg

Designed to meet the demands of everyday trailer users, it is compatible with the AL-KO cast clamp (product code ALK249804), ensuring secure attachment.
