Berker Anthracite Twin USB Charging Point (21238A) - 81010-20

Berker Anthracite Twin USB Charging Point (21238A) - 81010-20

The Berker 12V Socket is an electrical outlet designed to provide a 12-volt power supply for various low-voltage devices. Commonly installed in caravans, motorhomes, and boats, it allows users to connect and power appliances such as portable refrigerators, fans, chargers, and other 12V accessories.

4

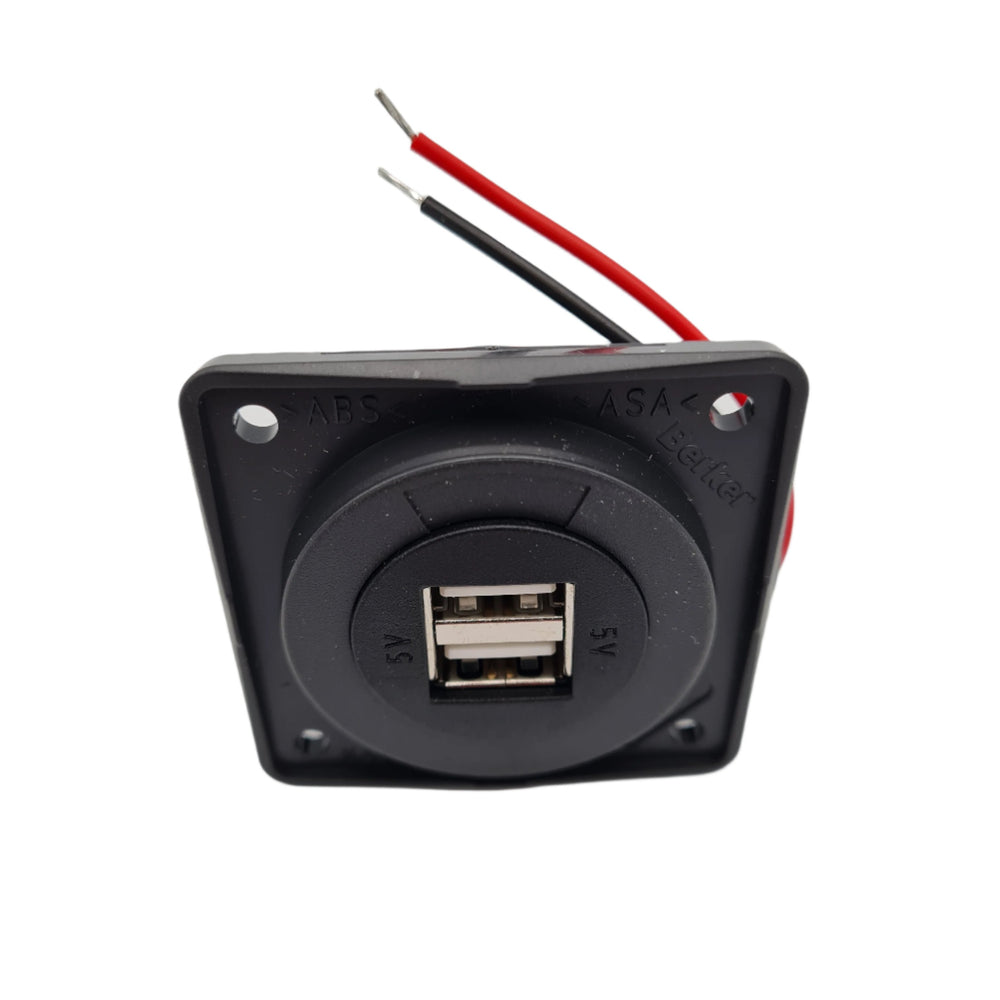

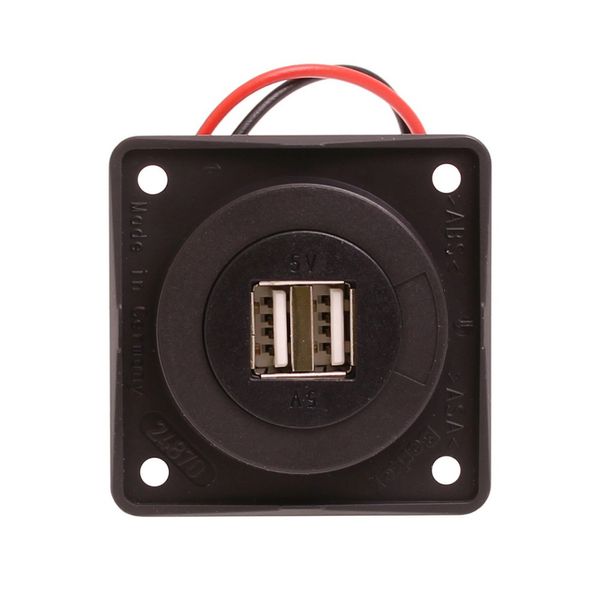

The Berker Anthracite Twin USB Charging Point (21238A / 81010-20) is fitted inside a caravan, motorhome or campervan as a flush-mounted wall socket.
It provides convenient 5 V USB charging for phones, tablets and other USB devices from the vehicle’s 12 V electrical system.

Typical mounting locations:

• Lounge or dinette wall

• Bedside panel

• Near seating areas or worktops

• Alongside other Berker modular switches and sockets

It is commonly used in vehicles fitted with Berker caravan/motorhome switch systems, matching the anthracite interior trim.

How is it fitted

Safety note:
This is a low-voltage 12 V DC accessory. Installation should be carried out by a competent installer. Always isolate the vehicle’s electrical supply before fitting.

Before you start

• Switch off the 12 V supply at the control panel or battery

• Choose a flat interior surface with enough clearance behind

• Confirm compatibility with your Berker frame/system

• Tools required: drill, jigsaw or hole saw (for cut-out), screwdriver, wire connectors

Step-by-Step Fitting

1. Prepare the mounting position

   • Select an interior wall or furniture panel.

   • Ensure there is space behind the panel for wiring and the USB module body.

2. Cut the aperture

   • Mark and cut the standard Berker module cut-out (to suit the mounting box or frame being used).

   • Smooth edges so the module fits cleanly and sits flush.

3. Connect the wiring

   • Connect the unit to the 12 V DC supply:

     • Positive (+) to the 12 V feed

     • Negative (–) to ground

   • Use suitable crimp connectors or terminals.

   • Ensure polarity is correct.

4. Mount the USB module

   • Insert the USB charging module into the mounting box or Berker frame.

   • Secure using the retaining clips or screws supplied with the frame/system.

5. Fit the anthracite cover plate

   • Clip the Berker anthracite fascia into place to complete the installation.

   • Check it sits flush and aligned with surrounding sockets/switches.

6. Restore power and test

   • Reconnect the 12 V supply.

   • Plug in a USB device to confirm both ports charge correctly.

Quick fit notes (for product page)

• Product type: Twin USB charging point

• Voltage input: 12 V DC

• Output: 5 V USB (dual ports)

• Mounting: Flush-mounted, Berker modular system

• Location: Interior wall or furniture panel

• Finish: Anthracite (matches Berker caravan switch range)

• Installation: Low-voltage, competent DIY or professional install
