Car Best LCD TV Double Adjustable Bracket - 49396 WALL MT 15KG

Where This Goes

This double adjustable TV bracket is designed to mount a compatible TV to a vertical wall surface — ideal for use in:

• Motorhomes, campervans & caravans

• Boats & yachts

• Bedrooms, living rooms or kitchens at home

• RV / mobile shower & lounge areas

It’s perfect for screens where you want flexibility in viewing angle and position, because the double arm lets you swivel, extend and tilt the screen after installation. It fits TVs with VESA mount hole patterns 75×75 mm to 100×100 mm and supports screens weighing up to 15 kg.

How It Is Fitted

Before You Start

• Check TV compatibility: Ensure your TV has a VESA mount between 75×75 mm and 100×100 mm and weighs ≤15 kg (including any casing).

• Choose a solid, vertical wall (brick, block, or reinforced stud wall) that can safely support the TV plus the bracket and movement forces.

Tools you’ll need:
Tape measure, pencil, spirit level, drill and appropriate bits, wall plugs/screws, screwdriver/ratchet set.

Step-by-Step Installation

1. Mark the Wall Mount Position

   • Hold the wall plate level on the wall where the TV will go.

   • Use a pencil to mark the drilling points for the fixings.

2. Drill Holes & Add Wall Plugs

   • Drill holes suitable for your wall type (masonry or stud).

   • Insert wall plugs for secure anchoring of the screws.

3. Secure the Wall Plate

   • Fit the bracket’s wall plate to the wall using the screws and plugs.

   • Tighten firmly so the mount does not shift.

4. Attach Bracket Arms to TV

   • Align the bracket’s TV arm holes with the TV’s VESA holes.

   • Use the supplied screws (or appropriate sized screws) to fix the arms to the back of the TV.

5. Hang the TV on the Wall Plate

   • Lift the TV and hang it onto the mounted wall plate according to the bracket design.

   • Ensure it is fully seated and secure before releasing.

6. Adjust Viewing Angle

   • Use the double arms to pull the TV out from the wall, tilt up/down, or swivel left/right to your preferred position.

7. Final Check

   • Confirm all screws are tight and that the TV moves smoothly without looseness.

   • Re-tighten if needed after initial use.

Quick Fit Notes

• Mount type: Double-arm adjustable wall bracket – ideal for angled viewing.

• Supports: TVs with VESA 75×75 mm to 100×100 mm mounting.

• Maximum load: 15 kg (TV + mount).

• Construction: Lightweight aluminium finish (approx. 1 kg bracket weight).

• Movement: Extendable arms with swivel and tilt adjustment for versatile viewing angles.

• Ideal for: Motorhomes, caravans, boats & home use where flexible TV positioning is required.

Pro tip: Always use a spirit level when marking drill points and choose heavy-duty wall anchors if fitting to plasterboard/stud walls to ensure a secure installation

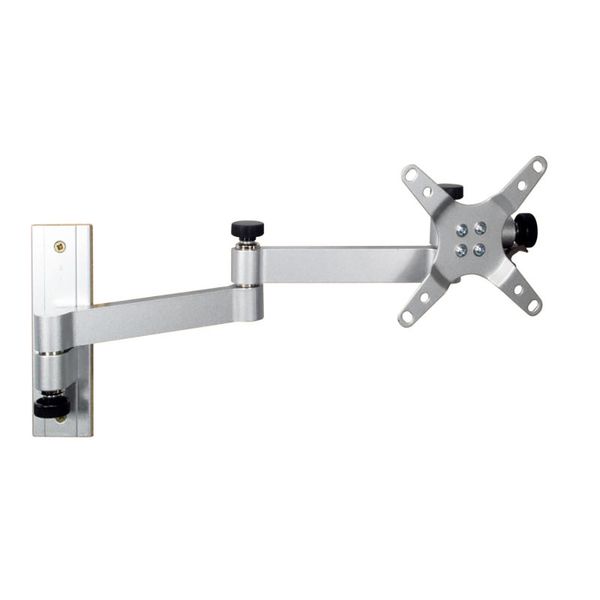

TV bracket on arm. Very versatile, Holes 75mm - 100mm (VESA)

• 116mm x 152mm x 81 – 390mm

• Carries TVs up to 15KG in weight

• Bracket weight – 1.0 KG

• Made from Aluminium (Colour: Silver)
