DLS 20mm Angled Connector (3/4″ B.S.P) Blue c/w Nut and Washer

DLS 20mm Angled Connector (3/4″ B.S.P) Blue c/w Nut and Washer

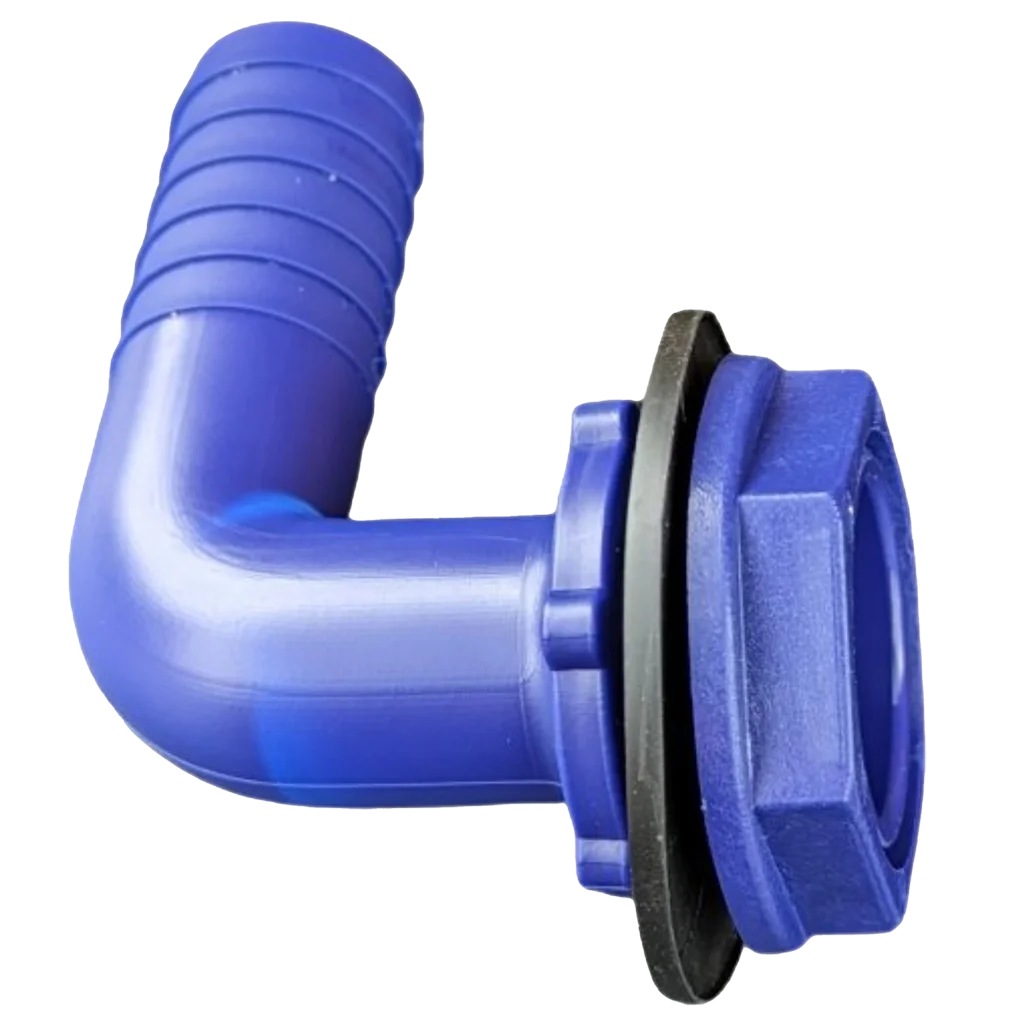

The DLS 20 mm Angled Connector ¾″ B.S.P (Blue) with C-Nut and Washer is a robust plumbing fitting designed to provide a secure and flexible connection between 20 mm water pipes and a ¾″ B.S.P (British Standard Pipe) threaded hose or tap fitting on caravans, motorhomes, campervans and boats. Its angled body makes it especially useful in tight or awkward spaces where a straight connection would be difficult or prone to kinks — for example behind service panels or around shelving and furniture.

Finished in a distinctive blue colour coded style with the supplied C-nut and sealing washer, this connector helps ensure a watertight joint in your leisure vehicle’s fresh water system. Whether you’re plumbing in an external hose point, utility tap, shower outlet or filling connection, this angled adapter simplifies routing while maintaining solid performance.

Key Features

• Fitting Type: 20 mm pipe to ¾″ B.S.P threaded connection

• Angle: Angled body helps avoid sharp pipe bends

• Included: Blue C-nut and sealing washer for secure joint

• Use: Fresh water plumbing in caravans, motorhomes, campervans, boats

• Durable: Designed for mobile water systems and touring conditions

Weight

• Approximate Weight: 0.05 kg (50 g)

How and Where It Is Used

This angled connector is used within the fresh water plumbing system of a leisure vehicle when you need to transition from rigid 20 mm pipework to a ¾″ threaded connection — commonly found on external outlets, garden hose points and other service fittings. The angled design helps route pipework neatly and avoids stress or kinks that can occur with straight fittings in constrained spaces.

Typical use locations include:

• External water outlets such as hose or utility taps

• Service panel connections behind caravans and motorhomes

• Internal plumbing junctions where space is limited

• Connecting to accessories like external showers or bayonet outlets

• Retrofit or repair of existing water supply systems

Uses

• Converting 20 mm water pipe to a ¾″ B.S.P threaded fitting

• Providing angled water entry/exit points to ease hose routing

• Plumbing fresh water outlets on caravan/motorhome side panels

• Joining pipework to external taps and utility connectors

• Repairing or upgrading existing angled joints in water systems

Fitting Instructions

1. Turn off the water supply: Ensure the fresh water system is depressurised before cutting or working on pipework.

2. Prepare the 20 mm pipe: Cut the pipe squarely using a proper pipe cutter. Ensure the cut end is clean and free of burrs.

3. Slide on the C-nut: Push the supplied blue C-nut onto the pipe, followed by the sealing washer so it sits against the face of the nut.

4. Position the connector: Insert the 20 mm end of the angled connector into the pipe, ensuring a snug fit.

5. Tighten the C-nut: Screw the C-nut onto the ¾″ B.S.P male thread of the receiving fitting (such as a water outlet or tap). Use an appropriate wrench to tighten until secure — do not overtighten, as this may damage threads or the washer.

6. Check alignment: Make sure the angled connector points in the desired direction for downstream pipework or hose routing.

7. Flush and test: Turn the water supply back on and check for leaks around the joint. If necessary, tighten slightly or re-seat the washer for a watertight seal.

Tip: If the connection is external on the vehicle, consider using a small amount of food-grade silicone plumber’s grease on the washer to help ensure a good seal without over-tightening.

Why Choose This Fitting?

The DLS 20 mm Angled Connector ¾″ B.S.P (Blue) is a practical and versatile plumbing solution when working with caravan fresh water systems. Its angled design helps avoid pipe kinks and simplifies installations in compact service areas, while the included C-nut and washer ensure a secure, leak-resistant joint — reducing downtime and improving water flow reliability on your touring adventures.
