DLS 950mm Sliding Table Rail with Fixing Kit

DLS 950 mm Sliding Table Rail with Fixing Kit – Caravan anf Motorhome Table Support

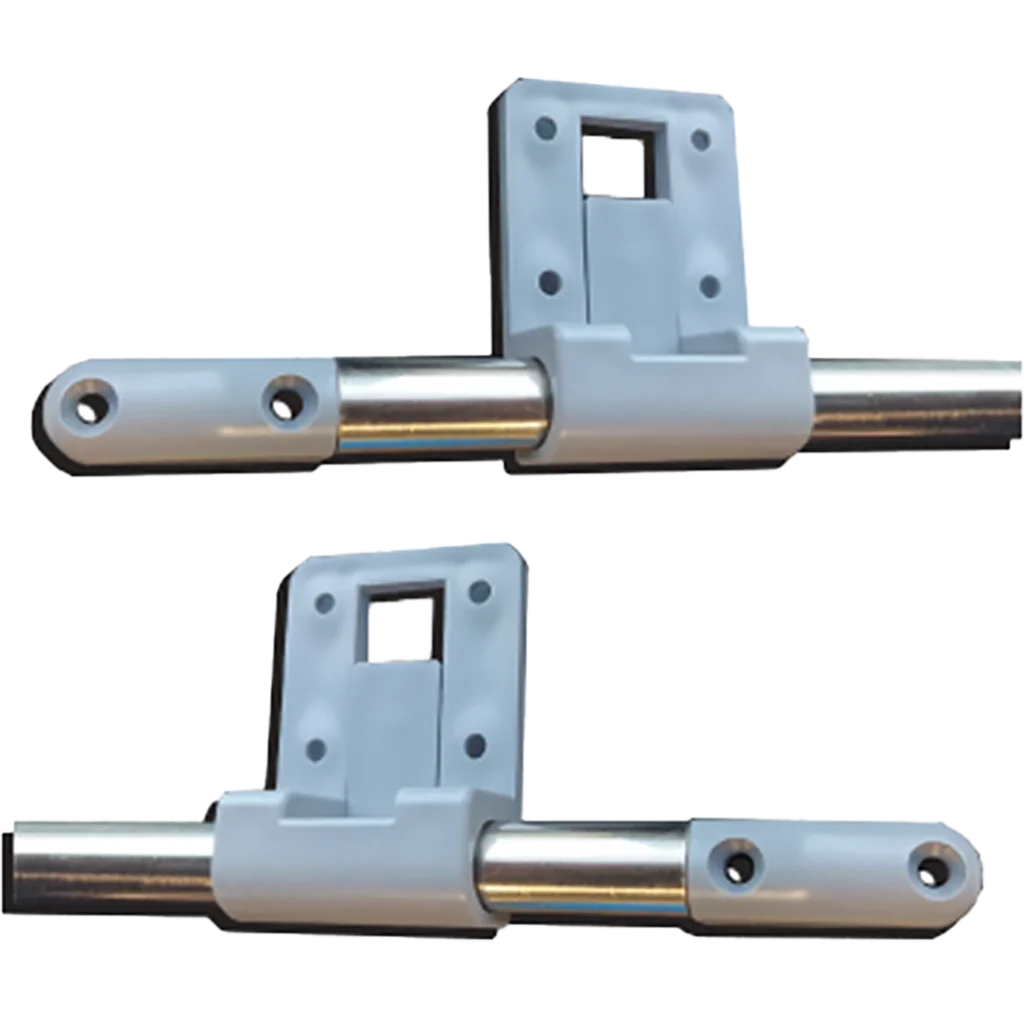

The DLS 950 mm Sliding Table Rail with Fixing Kit is a robust and adjustable support rail for caravan and motorhome table tops, designed to allow smooth horizontal sliding movement and secure mounting of your table surface. Ideal for dinette areas, lounge seating or compact living spaces, this rail lets you reposition the table easily — extending it for shared meals or sliding it aside for more space when not in use.

Made from sturdy, corrosion-resistant materials with a complete fixing kit included, this sliding table rail offers reliable performance in mobile environments where vibration and movement are common. Whether you’re dining, working, playing games or just relaxing inside your vehicle, this rail helps make your table area more flexible and comfortable.

Key Features

• Length: 950 mm sliding rail

• Application: Table support for caravans, motorhomes & campervans

• Includes fixing kit — screws, brackets and slide runners

• Smooth sliding action for easy repositioning

• Durable and discharge-resistant construction

• Ideal for dinette & lounge table tops

Weight

• Approximate Weight: 1.35 kg (1350 g)

How and Where It Is Used

The DLS 950 mm Sliding Table Rail is installed in the interior living area of a caravan, motorhome or campervan where a table surface is required — typically between seating benches in a dinette or beside a lounge area. Once fitted, the rail provides a guided track along which the table top (mounted on slide fittings) can move forward and backward smoothly, giving you flexible use of dining or workspace without having to fully detach the table.

Typical use locations include:

• Dinette seating areas where seats face each other

• Lounge or multifunction spaces used for eating, working or relaxing

• Compact kitchen areas where repositioning a table can improve access

• Campervan conversions where space optimisation is essential

The included fixing kit ensures the rail is firmly mounted to your vehicle’s internal walls or sub-floor, while slide runners attach to the underside of the table top — allowing controlled movement.

Uses

• Repositioning table surfaces for dining, work or socialising

• Sliding the table out of the way to increase living space

• Easy movement for entry/exit around seating

• Flexible layout options in compact interiors

• Enhancing comfort in caravans, motorhomes & campervans

Fitting Instructions

Tools you may need: electric drill with bits, screwdriver set, spirit level, tape measure, masking tape & marker.

1. Plan placement:

   • Identify where the sliding rail will be mounted — usually horizontally between bench seats or on a flat wall surface where the table will be used.

   • Ensure there’s at least 950 mm of clear space along the intended rail track.

2. Mark mounting points:

   • Use the tape measure and spirit level to mark horizontal guide lines for the top and bottom fixing angles on the interior panel.

   • Align the rail at your desired table height, ensuring it is level.

3. Prepare holes:

   • Pre-drill pilot holes in the marked positions to suit the screws provided.

   • If drilling into laminated furniture or panels, use masking tape on the surface to reduce splintering.

4. Fix the sliding rail:

   • Position the rail against the panel or wall and insert screws through the rail’s mounting holes.

   • Tighten screws firmly but avoid over-tightening to prevent panel damage.

5. Attach slide runners:

   • Fix the paired slide runners (supplied) to the underside of the table top at the correct spacing so they align with the rail.

   • Ensure the runners slide smoothly along the track without binding.

6. Check movement:

   • Place the table onto the sliding rail system and slide it back and forth to confirm smooth operation.

   • Adjust screw tightness as needed to eliminate play or stiffness.

7. Final checks:

   • Verify all fixings are secure and that the table height is comfortable for sitting and dining.

   • Wipe away any markings and test the system under load (e.g., with chairs pulled in).

Tips:

• If your vehicle’s internal panel is thin, consider using backing blocks behind the fixing points for extra strength.

• Always ensure the sliding rail track is level — even small misalignment can cause binding or uneven wear.

Why Choose This Rail?

The DLS 950 mm Sliding Table Rail with Fixing Kit is a versatile and durable solution for flexible table use in leisure vehicles. Its smooth movement, complete fixing hardware and robust build make it ideal for modern caravan and motorhome interiors where space optimisation and user comfort are key — giving you multiple layout options without compromising strength or reliability.
