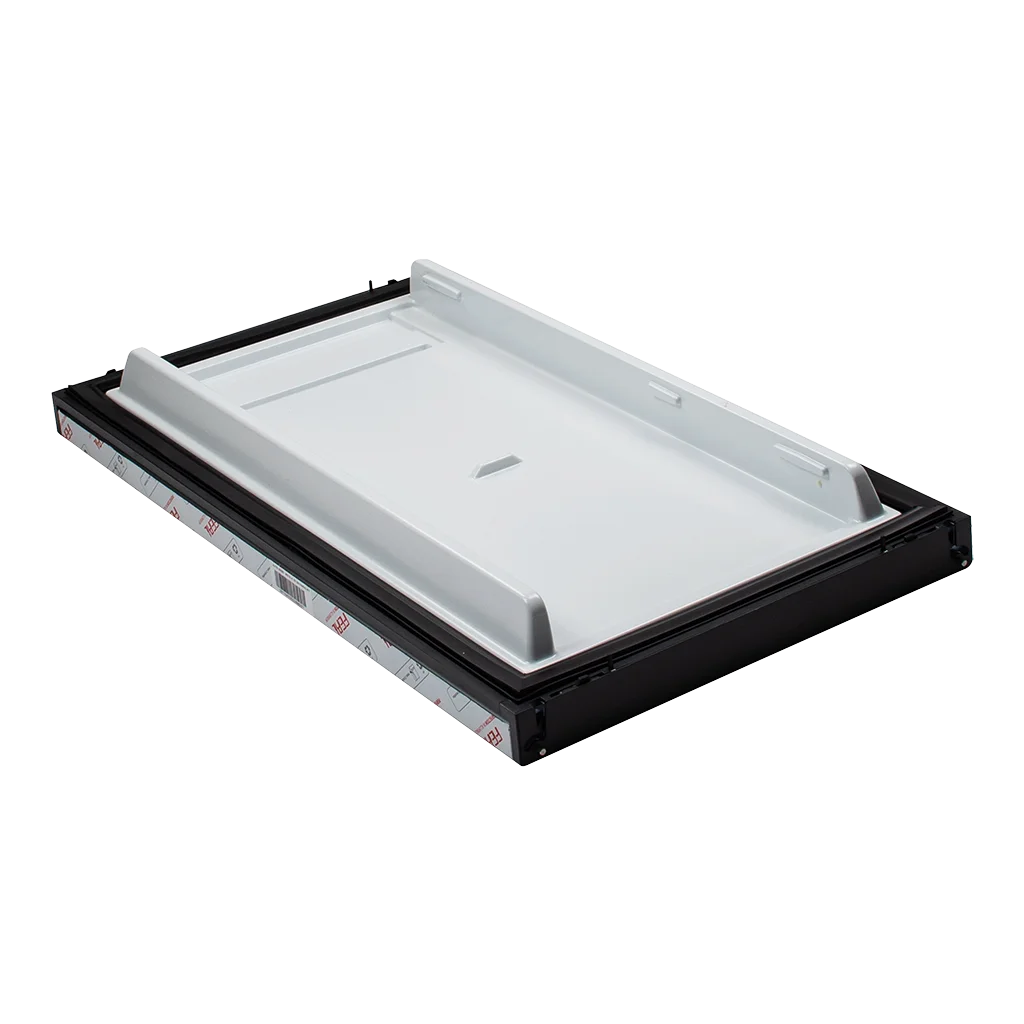

Dometic RC10.4 Fridge Door Assembly

Dometic RC10.4 Fridge Door Assembly

The Dometic RC10-4 Fridge Door Assembly is a genuine replacement door panel and frame designed specifically for the Dometic RC10-4 compressor refrigerator used in caravans, motorhomes, campervans and boats. This complete door assembly provides a fresh, snug closure for your fridge compartment — helping maintain consistent temperatures, improve energy efficiency, and ensure secure sealing of cold air inside the fridge.

Over time, fridge doors can become worn, scratched, dented or fail to seal properly due to age, impact or frequent use. Replacing the door with this authentic Dometic assembly restores the original function and appearance of your fridge, helping keep stored food fresher and your fridge performing optimally on the road.

Key Features

• Model: Dometic RC10-4 fridge door assembly

• Genuine replacement part — OEM quality and fit

• Durable construction — suitable for mobile leisure environments

• Ensures airtight closing for better cooling performance

• Restores fridge appearance in kitchens and living areas

Weight

• Approximate Weight: 1.9 kg (1900 g)

What It Fits

This fridge door assembly fits Dometic RC10-4 compressor refrigerators — a common model installed in:

• Caravans

• Motorhomes

• Campervans

• Marine vessels with Dometic 12 V/230 V fridge systems

It is specifically tailored to match the RC10-4 fridge cabinet dimensions, hinge locations and latch mechanisms — ensuring seamless replacement without door misalignment or seal issues.

How and Where It Is Used

The Dometic RC10-4 Fridge Door Assembly is installed in place of a damaged, worn or inefficient existing door in your leisure vehicle’s fridge. The fridge door is one of the most frequently used parts of the cooling system — opened multiple times a day for access to food and drink. Over time, repeated use, knocks in transit, or general wear can compromise its seal and function.

This replacement assembly:

• Restores proper sealing around the fridge cavity, helping maintain internal temperatures

• Improves energy efficiency by reducing cold air loss

• Enhances hygiene and cleanliness with a fresh internal surface

• Restores the fridge’s original look with a matching panel and frame

—

Uses

• Replace a cracked, dented or warped fridge door

• Restore a tight magnetic or gasket seal for better cooling

• Renew the aesthetic finish of your refrigerator interior

• Improve fridge thermal performance and efficiency

• Maintain reliable food storage temperatures while touring

Fitting Instructions

Tools Needed:
Screwdrivers (Phillips & flat), adjustable spanner, spirit level, clean cloth.

1. Turn Off Power:

   • Switch off fridge electrical supply (12 V/230 V) and isolate if necessary.

   • Empty the fridge and remove shelves to reduce weight and avoid obstruction.

2. Open Existing Door:

   • Fully open the current fridge door to access hinge fixings.

3. Remove Old Door:

   • Locate the top and bottom hinge screws securing the door.

   • Using the appropriate screwdriver, remove these screws while supporting the door with a second hand to prevent dropping.

   • Carefully lift the door off its hinges and set aside.

4. Prepare New Door:

   • Take the Dometic RC10-4 door assembly and check hinge locator positions.

   • Ensure the gasket seal around the edge is seated properly.

5. Mount to Hinges:

   • Position the new door onto the top hinge pin/shaft first, then lower it onto the bottom hinge.

   • Align the door so that it sits flush with the fridge frame.

6. Secure Fixings:

   • Insert and tighten the top and bottom hinge screws without over-tightening (to avoid stress on the frame).

   • Check that the door remains level and parallel to fridge edges.

7. Check Seal and Movement:

   • Gently open and close the door several times to ensure smooth action.

   • Confirm the gasket seals evenly all around when closed.

8. Reconnect and Test:

   • Restore power and monitor fridge temperatures over the next few hours to confirm proper performance.

Pro Tips:

• If your old door has trim or décor panels, transfer them to the new door or replace with matching panels for a seamless finish.

• Use a spirit level while tightening the hinges to avoid slanted installation.

Why Choose This Assembly?

The Dometic RC10-4 Fridge Door Assembly offers a precise fit, durable construction and genuine part quality that ensures your leisure vehicle fridge functions as intended. Whether you’re repairing a damaged door or simply refreshing an older unit, this replacement assembly helps maintain thermal performance, energy efficiency and fridge appearance — key factors for comfortable touring and food storage on all your trips.
