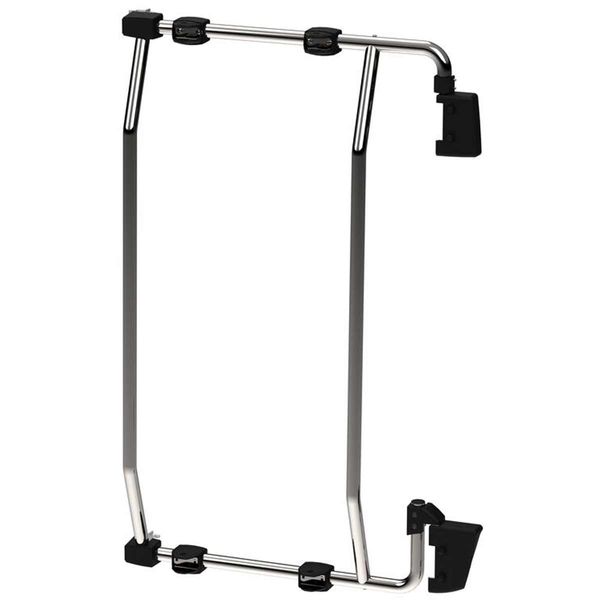

The Fiamma Kit Frame Ducato (2006+) – 08753-01 is a heavy-duty vehicle-specific mounting frame designed to install a Fiamma Carry-Bike Frame system onto vans such as the Fiat Ducato, Peugeot Boxer, and Citroen Relay (2006 onwards).

Unlike standard bike racks that mount directly to the door, this system attaches to the vehicle’s structural points, providing superior strength and stability — making it ideal for e-bikes and heavier loads.

Within the main product description, the total product weight is approximately 10.8kg, consistently confirmed across multiple retailer specifications.

Why Choose This Fiamma Kit Frame?

• Genuine Fiamma vehicle-specific mounting system

• Designed for Fiat Ducato / Boxer / Relay (2006+)

• Strong steel frame for enhanced load support

• Ideal for e-bike compatible setups

• Mounts to vehicle structure, not just doors

• Allows rear doors to open even with bikes mounted

Key Features

• Product name: Fiamma Kit Frame Ducato (2006+)

• Part Number / SKU: 08753-01

• Product type: Bike rack mounting frame

• Compatibility: Carry-Bike Frame systems

• Vehicle compatibility: Ducato / Boxer / Relay (2006+)

• Mounting type: Structural frame (door frame mounting)

• Positioning options: Standard / middle / low

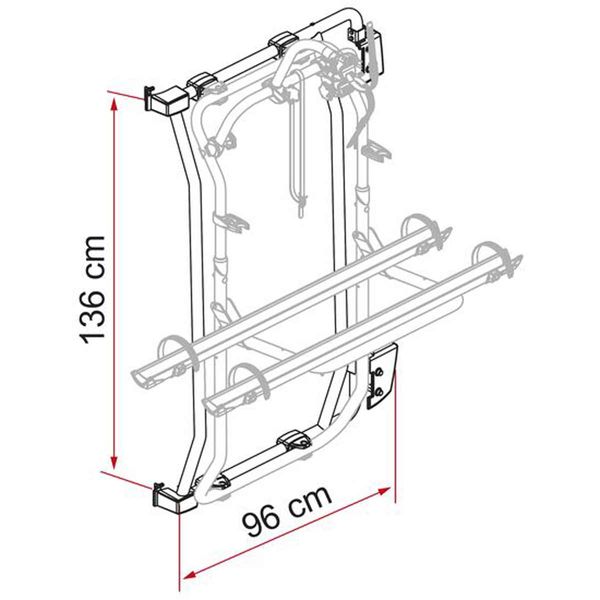

• Vertical wheelbase: Approx. 136cm

• Approximate total product weight: 10.8kg

This frame allows the bike rack rails to be mounted in three different height positions, improving accessibility and flexibility depending on your setup.

Where It Fits

This kit is designed for:

• Fiat Ducato (X250 / X290 – 2006 onwards)

• Peugeot Boxer (2006 onwards)

• Citroen Relay / Jumper (2006 onwards)

Fits:

• High roof vans (H2 / H3)

• Campervans

• Motorhomes

• Van conversions

⚠️ Not suitable for vehicles with 270° rear door hinges.

Fitting Instructions

1. Identify the correct mounting points on the vehicle door frame.

2. Position the frame onto the structural fixing points.

3. Secure using supplied mounting hardware.

4. Attach the Carry-Bike Frame to the installed kit frame.

5. Select desired rail height (standard, middle, or low).

6. Tighten all fixings and check alignment.

7. Test stability before loading bikes.

Installation uses existing vehicle structure for maximum strength.

What’s Included

• Fiamma Kit Frame Ducato mounting frame

• Structural mounting components

• Fixing hardware

• Complete vehicle-specific installation kit

Carry-Bike Frame and rails are typically sold separately.

Why Buy This Product?

• Provides a stronger, safer mounting solution than door-mounted racks

• Ideal for e-bike transport and heavier loads

• Vehicle-specific design ensures correct fit

• Allows full rear door functionality

• Trusted Fiamma engineering and build quality

Ideal For

• Campervan bike rack installations

• Motorhome rear door bike carrier setups

• E-bike transport systems

• Fiat Ducato conversions

• Long-distance touring setups

• Professional van conversions

SEO Vehicle Compatibility

Designed specifically for:

• Fiat Ducato (2006+)

• Peugeot Boxer (2006+)

• Citroen Relay (2006+)

Also used in conversions from:

• Bailey

• Swift

• Elddis

• Coachman

Compatibility depends on rear door configuration and hinge type.
