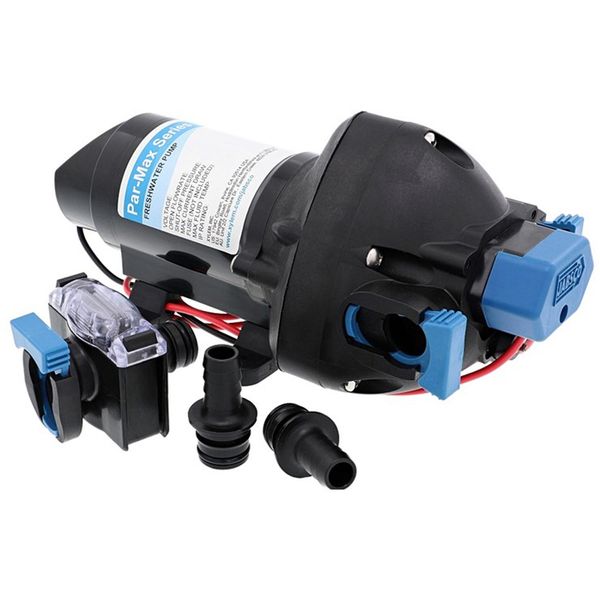

Jabsco Par-Max 2 Freshwater Delivery Pump 24V 2gpm (7.6lpm) 25psi - 31295-3524-3A

The Jabsco Par Max 2 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.

Jabsco Par Max 2 water pressure pumps are internally grounded and have a three chamber diaphragm on demand pump with the performance characteristics to match the needs of a typical vessel with a shower, water heating and up to three faucets.

The water pressure pump is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. Quick connection fittings are included as standard for ease of pump installation, as well as a 40 mesh inline strainer.

Jabsco Par Max Pressure Pump Features & Benefits:

- Enclosed motor

- Integrated Pressure Switch

- Vibration & Noise reducing mounting

- Self‐priming

• Runs Dry without Damage

• Hose Size	13mm / 1/2"
  Replaces	Jabsco 31295‐0094 Par Max 1.9 Pumps & 42630‐2994‐P. Closest Alternative for 509409 Flojet R4305 Pressure Pump & 42630‐3994‐P.
  Self Primes up to	3 Metres (9.8 Feet) Vertical Lift
  Inlet Outlet	Fittings for 13mm (1/2") ID hose
  Brand	Jabsco
  Type	Fresh Water Pumps
  Voltage Description	24V DC
  Model	31295-3524-3A
  Size	Leads: 305mm (12"), 1.5mm2 (16 AWG)
  Height Description	107mm (4.2")
  Width	107mm (4.2")
  Length	231mm (9.1")
  Fuse	5A (not included)
  Temperature Range	Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F)
  Flow Rate Description	7.6 LPM (2 US GPM)
  Approvals	ISO 8846 MARINE (ignition protection), CSA Listed, C.E Certified
  Pressure Rating	Operating: 25 PSI (1.7 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum
  Series	Par Max 2
  Amps Description	3A (at 35 PSI / 1.7 bar)
  Supplied With	Inline Strainer (40 Mesh) & Quick Connect Fittings
  Cut In Pressure	15 PSI / 1 Bar
  Cut Out Pressure Description	35 PSI / 2.4 Bar
  Warranty	3 Years
