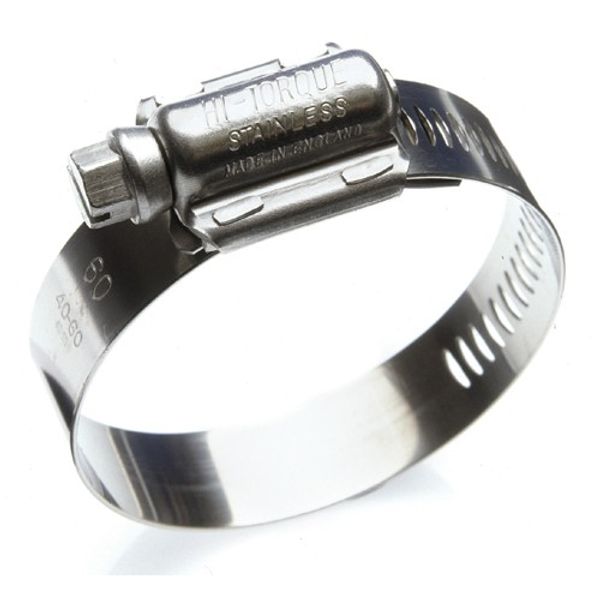

JCS Hi-Torque Stainless Steel 304 Hose Clamp (170mm - 200mm)

JCS Hi-Torque Stainless Steel 304 Hose Clamp (170mm - 200mm)

This JCS hose clip is specifically designed for tough wire-reinforced hoses and where an extra margin of safety and reliability is required. JCS HTM200P hose clip is suitable for securing 170mm to 200mm outside diameter hose. Hi-Torque clamps out perform nut and bolt type clamps due to:

Higher sealing pressure due to more uniform tightening

Offer a larger adjustment for each size

No loose parts so quicker to fit and requires less space

Unique 'Straight Line' housing ensures that every thread in the screw is fully engaged in the band

Twice the strength of ordinary worm drive hose clips due to the high tensile banding and hardened rolled thread screw

Sold singly

Lloyds Register Type Approval for marine, offshore and industrial use. They are specifically approved for the critical application of sealing wet diesel exhaust hoses.

Material Specification

All parts: BS304 - EN1 4301

Tensile strength = 1150 N/mm sq (approximately 75 tons/in sq)

Recommended Setting Torques: 15 Nm (130 lb. in)
