Lippert Sliding LCD TV Ceiling Bracket

The Lippert Sliding LCD TV Ceiling Bracket is a compact and versatile mounting solution designed for installing televisions in caravans, motorhomes, campervans, boats, and other mobile living spaces. This innovative bracket allows the television to be mounted to the ceiling or inside a cupboard and then pulled out and lowered into position when needed.

The bracket operates on smooth sliding runners, allowing the TV to extend outward and fold down for comfortable viewing. Once extended, the screen can rotate up to 360°, giving maximum flexibility to position the TV exactly where it is needed inside your caravan or motorhome.

The adjustable design also allows the TV to lower approximately 7 cm, helping to achieve the ideal viewing height when mounted inside overhead cupboards.

When not in use, the bracket slides neatly back into its storage position, helping to save space and keep the television secure during travel.

This makes it ideal for caravan entertainment systems, campervan conversions, and motorhome TV installations where space is limited.

Why Choose This Caravan TV Bracket?

• Designed for caravans, campervans, and motorhomes

• Ceiling-mounted sliding TV bracket

• Smooth runner system for easy pull-out operation

• 360° rotation for flexible viewing angles

• Height adjustment with approx. 7 cm drop

• Compact design allows the TV to stow inside cupboards

• Durable construction for reliable use in mobile environments

What's Included

• 1 × Lippert Sliding LCD TV Ceiling Bracket

• Sliding runner mounting assembly

• TV mounting plate

Key Features

• Product Name: Lippert Sliding LCD TV Ceiling Bracket

• Brand: Lippert

• Manufacturer Part Number: 12593/3500

• Product Code / SKU: 34280

• Mount Type: Ceiling / cupboard sliding mount

• Maximum TV Size: Up to 17"

• Maximum Load Capacity: 10 kg

• Rotation: 360°

• Adjustable Drop: Approx. 7 cm

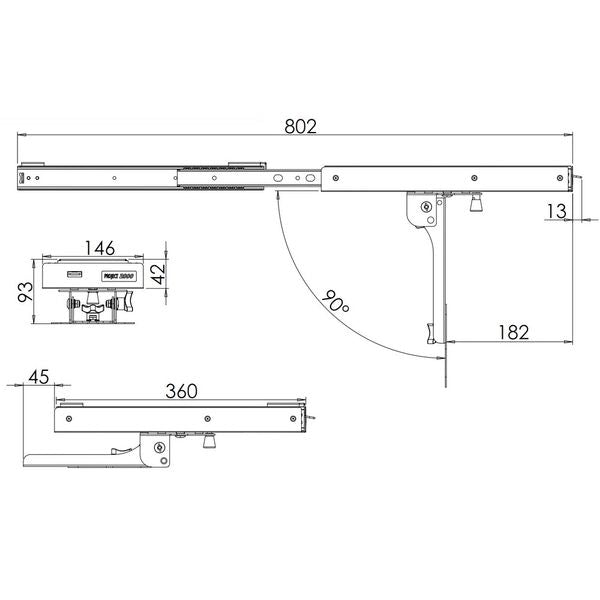

• Dimensions (Stowed): 340 × 140 × 100 mm

• Width: 147 mm

• Colour: Silver

• Condition: New

• Product Weight: Approx. 3.4 kg

Where It Fits

This sliding TV bracket is suitable for installation in:

• Caravans

• Motorhomes

• Campervans

• Campervan conversions

• Boats and narrowboats

• Mobile homes

It is commonly installed inside overhead cupboards or ceiling panels, allowing the TV to slide out and drop down for viewing.

TV Compatibility

Always check the TV mounting pattern and weight before installation.

Fitting Instructions

1. Choose a strong ceiling panel or cupboard interior capable of supporting the bracket and TV weight.

2. Secure the bracket base plate using appropriate mounting screws.

3. Attach the TV mounting plate to the back of the television.

4. Slide the bracket outward and lower it into viewing position.

5. Rotate the TV to achieve the desired viewing angle.

6. Slide the bracket back into its storage position when not in use.

Professional installation is recommended when mounting inside cabinetry.

Product Summary

The Lippert Sliding LCD TV Ceiling Bracket (34280) is a space-saving and flexible mounting solution designed for caravan, motorhome, and campervan TV installations. With its smooth sliding mechanism, 360° rotation, and adjustable drop function, it allows televisions to be stored neatly inside cupboards and lowered into position when required.

Perfect for compact caravan interiors, campervan conversions, and motorhome entertainment systems, this Lippert bracket provides a practical and reliable way to mount a television while maximising available living space.
