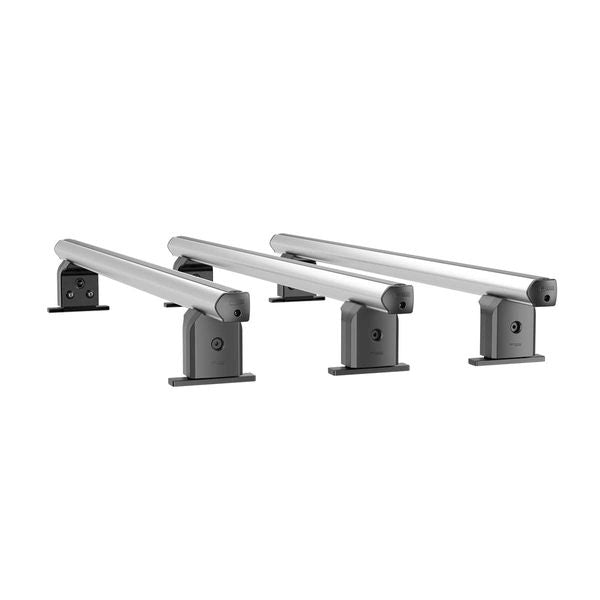

Menabo Professional Airdyn B Roof Bars for Ducato (150kg Max.)

Suitable for commercial vehicles including Ducato vans

Grooves allow for quick fixing of cargo accessories using "T" screws

Anti-whistle rubber and aerodynamic design

Adjustable inclination and height

Each bar in the set is 1650mm in length

Maximum load capacity of 150kg

Optional anti-theft system

Where this goes

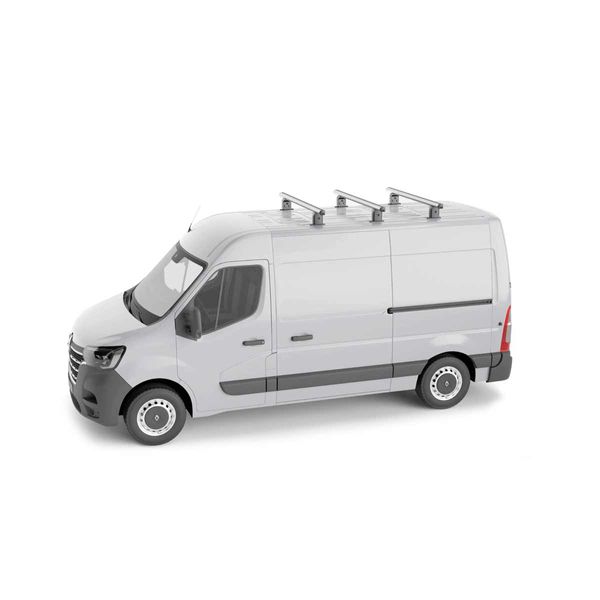

These are commercial-grade roof bars designed to fit on commercial vehicles with factory roof mounting points, especially those with pre-drilled holes or reinforced roof fixings on vans. They’re ideal for carrying long or heavy loads (ladders, timber, equipment) on large vans such as:

• Fiat Ducato IV (2014 >)

• Citroën Jumper III & Relay II

• Peugeot Boxer III & Manager II

• Iveco Daily V

• Opel / Vauxhall Movano III
  (Always check your specific model/year for compatibility.)

✅ Where they attach:
✔ Directly into your van’s roof fixing points (not on standard passenger car roof rails).
✔ Use the included fixing kit (brackets/bolts) designed for these commercial roof structures.

How it’s fitted

Before You Start

• Confirm your van model and roof type match the vehicles above.

• Check your roof’s maximum loading capacity (bars + cargo must stay within 150 kg).

• Tools you’ll need: ladder, socket set, torque wrench, gloves.

Step-by-Step Fitting Instructions

1. Unpack & prepare

   • Lay out all three roof bars, brackets, bolts and fixings from the kit.

2. Locate roof fix points

   • On Ducato and similar vans, there are pre-drilled threaded holes or reinforced fixing points along the roof edge. These are where the bars mount.

3. Fit the first bar

   • Position the first roof bar over the correct fix points.

   • Attach using the supplied fixing brackets and bolts — hand-tighten each initially.

4. Install remaining bars

   • Place the second and third bars along the roof, keeping them parallel and evenly spaced.

   • Adjust the height or angle of each bar so all three sit level and secure.

5. Secure all bolts

   • Once aligned correctly, tighten all fasteners to the manufacturer’s torque specification (see included instructions with the product).

6. Accessory grooves

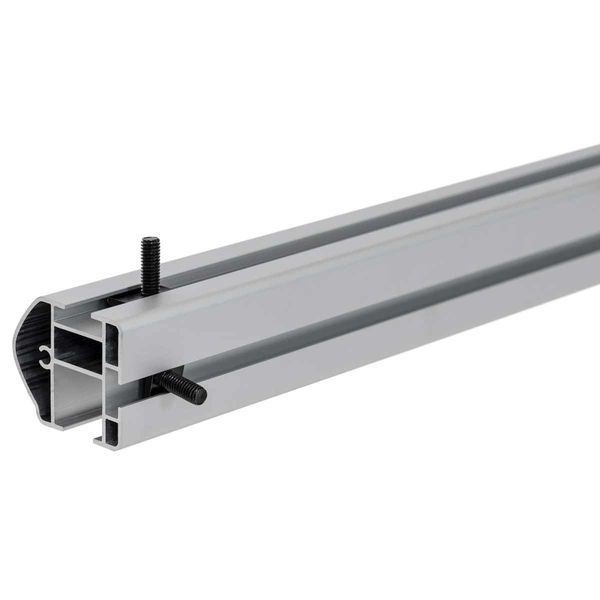

   • The bars feature T-grooves along the aluminium profile for adding accessories (cargo baskets, ladders, tie rings) with T-bolt fittings.

7. Final checks

   • Give each bar a firm shake — there should be no movement.

   • Recheck torque after the first short journey.

 Quick Fit Notes

• Fit type: Roof bar set for commercial vans with factory roof fixing points

• Load Capacity: 150 kg total (roof bars + cargo)

• Bar length: 1650 mm each

• Features:
  • Aluminium profile with T-grooves for accessories
  • Anti-whistle rubber and aerodynamic shape to reduce noise

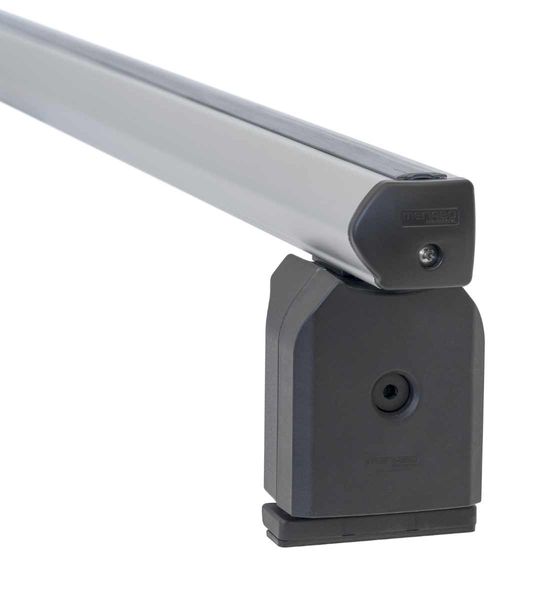

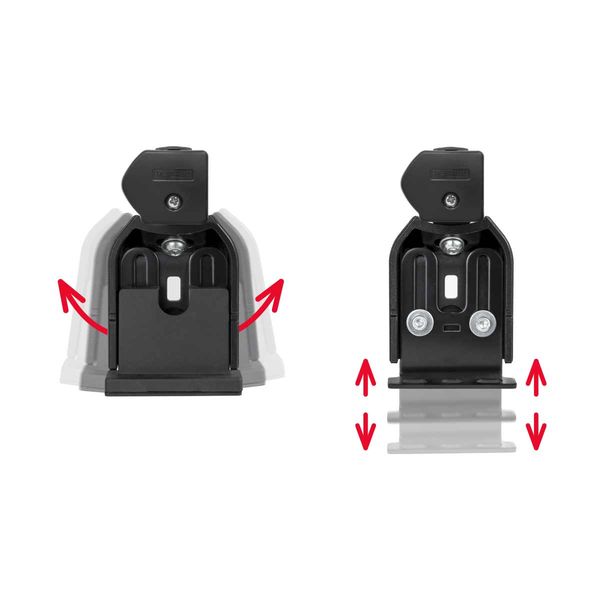

  • Adjustable inclination/height on each bar for perfect alignment

• Optional: Anti-theft locking system (Menabo code 000084800000)

Usage tip: Always check the vehicle’s maximum roof load limit in the owner’s manual and don’t exceed combined load weight (bars + items carried)
