NDS LSE 200 BR Lightsolar Rear Junction Box Kit

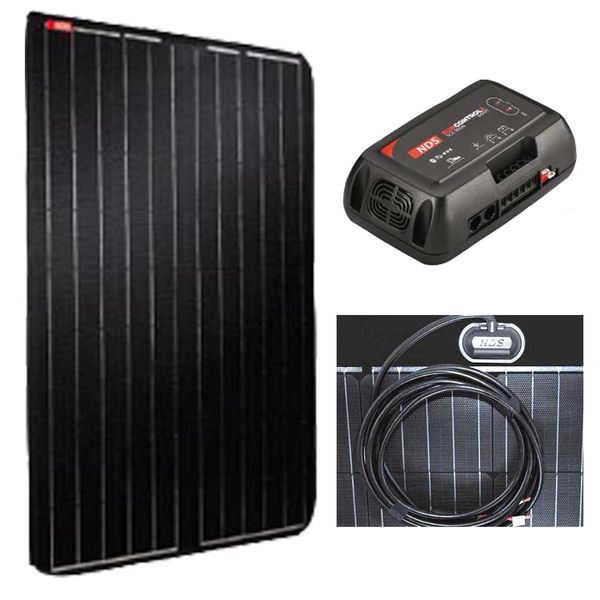

The NDS LSE 200 BR LightSolar Rear Junction Box Kit is a powerful ultra-thin solar charging system designed for caravans, motorhomes, campervans, boats, and off-grid vehicles. This complete kit includes a 200W LightSolar semi-flexible solar panel, Sun Control solar charge controller, wiring kit, and roof gland, allowing a full solar installation in one package.

The LightSolar range uses high-efficiency monocrystalline solar cells with approximately 18.75% efficiency, allowing strong power output while maintaining a slim lightweight design.

Unlike traditional solar panels, the Back Junction Box design places the electrical connection and bypass diodes on the rear of the panel, creating a completely flat upper surface. This reduces cable clutter and makes the panel ideal for pop-top campervan roofs or curved vehicle roofs.

The panel is constructed using a 7-layer laminated structure with a durable ETFE surface, which is highly resistant to UV exposure, corrosion, and weather damage while maintaining strong solar efficiency.

With 200W solar output, this kit can easily maintain and charge leisure batteries used to power lighting, water pumps, USB charging, fans, and other 12V appliances when camping off-grid.

How This Solar Kit Works

A solar kit converts sunlight into electricity and stores it in the leisure battery.

Typical Solar System Layout

Solar Panel → Solar Charge Controller → Leisure Battery → 12V Appliances

What Each Component Does

Solar Panel

• Converts sunlight into DC electricity.

Solar Regulator

• Controls voltage from the panel.

• Prevents battery overcharging.

• Optimises solar charging efficiency.

Leisure Battery

• Stores electricity generated by the solar panel.

This system allows caravans and campervans to generate renewable energy and stay off-grid longer without mains power.

Why Choose This Solar Panel Kit?

• Complete 200W caravan solar kit

• Ultra-thin 4mm semi-flexible solar panel

• High-efficiency monocrystalline photovoltaic cells

• Durable ETFE weather-resistant surface

• Rear junction box design for clean roof installations

• Ideal for campervan pop-top roofs and curved surfaces

What’s Included

• 1 × NDS LightSolar 200W solar panel

• 1 × Sun Control solar regulator

• 1 × 3m solar connection cable

• 1 × roof cable gland

• Installation wiring kit and fittings

This kit provides everything required to install a complete caravan solar power system.

Key Features

• Product Name: NDS LSE 200 BR LightSolar Rear Junction Box Kit

• Brand: NDS

• Manufacturer Part Number: KL200R360

• Product Code / SKU: 30959

• Maximum Solar Output: 200W (±3%)

• Nominal Voltage: 12V

• Solar Cell Type: Monocrystalline

• Solar Efficiency: Approx. 18.75%

• Number of Cells: 36

• Open Circuit Voltage: 23.3V

• Maximum Power Voltage: 19.8V

• Maximum Power Current: 10.1A

• Short Circuit Current: 10.9A

• Panel Construction: 7-layer laminated structure with ETFE surface

• Panel Dimensions: 1488 × 673 × 4 mm

• Cable Length: 3m solar cable

• Condition: New

• Product Weight: Approx. 6.79 kg

Where It Fits

This solar panel kit is suitable for installation on:

• Touring caravans

• Motorhomes

• Campervans

• Van conversions

• Boats and marine roofs

• Off-grid vehicles

The panel is usually mounted on the roof of the vehicle, while the regulator is installed inside the vehicle near the leisure battery.

Suitable For Vehicles

This product is commonly used in:

• VW Transporter campervans (T5 / T6 / T6.1)

• Fiat Ducato motorhomes

• Peugeot Boxer motorhomes

• Citroen Relay campervan conversions

• Ford Transit campervans

Touring caravans including:

• Bailey

• Swift

• Elddis

• Coachman

• Lunar

Installing solar panels on these vehicles allows longer off-grid camping and reliable battery charging.

System Compatibility

Compatible with AGM, gel, lead-acid and lithium leisure batteries, depending on the regulator configuration.

Fitting Instructions

1. Choose a roof location with maximum sunlight exposure.

2. Secure the solar panel using adhesive mounting or suitable brackets.

3. Route the solar cable through the supplied waterproof roof gland.

4. Connect the cable to the solar charge controller.

5. Connect the controller to the leisure battery.

6. Test the system to ensure correct charging operation.

Professional installation is recommended for caravan solar systems.

Product Summary

The NDS LSE 200 BR LightSolar Rear Junction Box Kit (30959) is a powerful and lightweight solar charging solution for caravans, campervans, motorhomes, and off-grid vehicles. With a high-efficiency 200W semi-flexible panel, ultra-thin design, and complete installation kit, it delivers reliable renewable energy with a clean low-profile roof installation.

Perfect for off-grid camping, campervan conversions, and caravan solar upgrades, this system ensures dependable solar charging wherever your travels take you.
