NDS PSM 150WP 360 Solenergy Panel Kit

NDS PSM 150WP 360 Solenergy Panel Kit

The NDS PSM 150WP 360 Solenergy Panel Kit is a complete 12 V monocrystalline solar charging system suited for caravans, motorhomes, campervans and leisure vehicles. It harnesses sunlight to help charge your leisure battery while on the road or at a pitch, helping prolong battery life and reduce reliance on mains hookup.

Product Overview

This solar kit features a 150 W Solenergy rigid solar panel with efficient monocrystalline cells and an integrated mounting bracket design, plus all the essential hardware you need to connect it to your 12 V system. The built-in brackets allow airflow beneath the panel once installed — helping prevent heat buildup and maintaining performance.

• Panel type: Rigid 150 W monocrystalline with aerodynamic rounded corners

• Nominal voltage: 12 V (open-circuit ~20.85 V, max power ~17.23 V)

• Max power: ~150 W ±3 %

• Cells: 32 high-efficiency cells (~18 % efficiency)

• Cable: Approx. 6 m bipolar cable with weather-proof sheath per panel

• Weight: ~12.5 kg

• Typical Dimensions: ~1475 mm × 676 mm × 60 mm

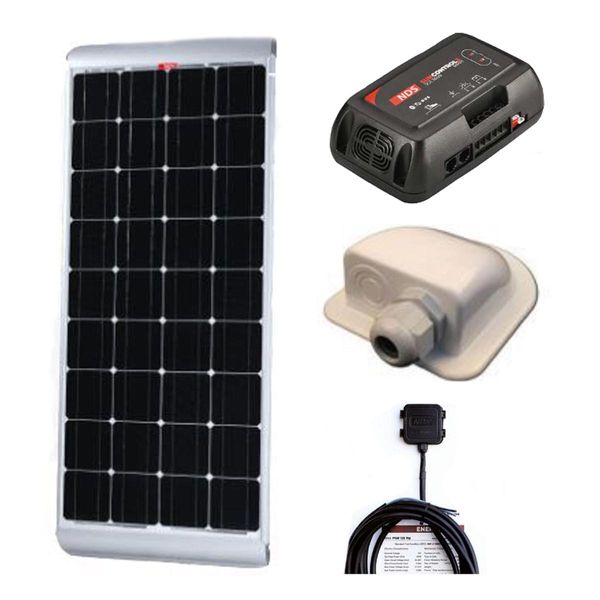

Kit Contents

This solar charging kit includes:

• 1 × 150 W Solenergy solar panel with integrated aluminium brackets

• 1 × Solar charge controller/regulator (for battery protection & charge management)

• Wiring harness and connectors with weather-sealed cable tails

• Roof gland for secure cable entry into your vehicle

Why Choose This Solar Kit

• All-in-one setup: Includes solar panel, regulator and wiring required for a basic DC system.

• Built-in mounting brackets: Makes panel mounting simpler and helps provide airflow for thermal performance.

• Durable construction: High-transmittance tempered glass and aluminium frame handle outdoor conditions.

• By-pass diodes: Help the panel continue to generate power even in partial shade.

• Long-cable ready: ~6 m of cable gives flexibility for roof-to-battery routing.

Simplified Fitting Instructions

1. Plan panel location: Choose a flat, unobstructed section of roof free of vents and aerials.

2. Mark and prepare roof: Clean the surface and mark drilling points following your panel’s bracket pattern.

3. Drill mounting points: Fit bolts or screws through the panel’s brackets into the roof substrate. Use suitable sealing tape or adhesive to ensure weatherproof mounts.

   • Tip: Panels can also be bonded with marine adhesive/sealant (e.g., MS polymer) for a sleek finish.

4. Route cables: Pass cables through the roof gland and seal around the gland to prevent water ingress.

5. Connect controller: Mount the regulator near your leisure battery and connect panel leads to controller, then controller to battery (observe polarity).

6. Check operation: After connecting, check the controller display for current and voltage to confirm light charging.

Safety: Always disconnect the battery before making electrical connections. Use appropriate fuses and protective components between the panel, controller and battery. If unsure, seek professional assistance.

Compatibility and Use

This kit is suited to 12 V systems in caravans, motorhomes, campervans and boats — particularly where a 150 W charging boost is desired for maintaining leisure battery levels during daylight hours. Ideal for topping up batteries while parked or in transit daytime.

Benefits at a Glance

• Provides renewable power to a 12 V battery system.

• Helps reduce mains hookup dependency.

• Suitable first time solar upgrade solution for leisure vehicles.
