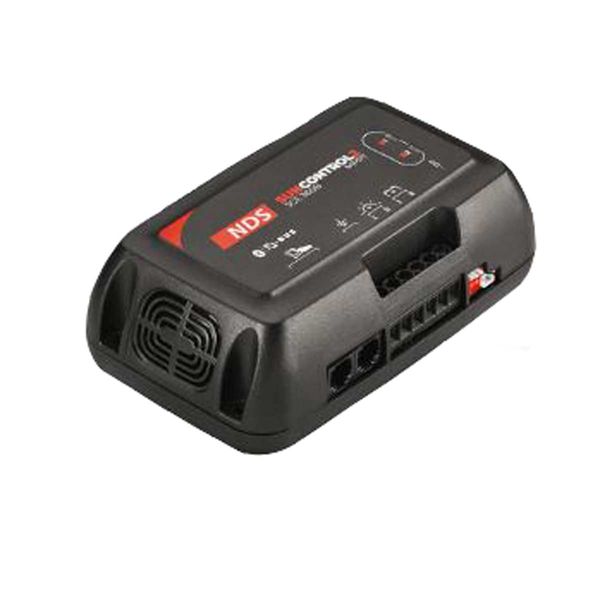

NDS SCE 360 Sun Control 2 12V-360W MPPT With N-BUS

The NDS SCE 360 Sun Control 2 MPPT Solar Regulator is an advanced solar charge controller designed for caravans, motorhomes, campervans, boats, and off-grid vehicles. It acts as the central controller between the solar panel and the leisure battery, ensuring that the energy produced by the solar panel is converted efficiently and safely into usable battery charging power.

This regulator supports solar panel systems up to 360W and uses MPPT (Maximum Power Point Tracking) technology to maximise the amount of energy harvested from the solar panels. MPPT regulators can generate up to 25% more efficiency compared to standard PWM regulators, helping charge batteries faster and more effectively.

The device also includes two solar panel inputs, allowing you to connect two separate panels (up to 180W each) or a single panel up to 360W. It supports a wide range of battery types including AGM, gel, lead-acid, and LiFePO4 lithium batteries, making it suitable for modern caravan and campervan electrical systems.

With N-BUS communication technology, the regulator can connect with other NDS power management devices and monitoring systems, allowing users to monitor and control their onboard energy system from a single interface or via compatible displays or apps.

How This Device Is Used in Solar Panel Systems

In a caravan or campervan solar system, the solar regulator is the key component between the solar panel and the battery.

Basic Solar System Setup

Solar Panel → MPPT Charge Controller (Sun Control 2) → Leisure Battery → 12V Appliances

What the Regulator Does

• Controls voltage from the solar panel before it reaches the battery

• Optimises solar output using MPPT technology

• Prevents overcharging or battery damage

• Manages charging stages for longer battery life

• Can maintain both leisure and starter batteries

Solar panels often produce higher voltage than the battery can accept. The regulator converts this voltage into the correct charging current and voltage, ensuring safe and efficient battery charging.

Without a solar regulator, connecting a solar panel directly to a battery could damage the battery or reduce its lifespan.

Why Choose the NDS Sun Control 2?

• Designed for caravans, motorhomes, campervans, and boats

• MPPT technology increases solar efficiency by up to 25%

• Supports solar panel systems up to 360W

• Dual solar inputs for two panels

• Compatible with AGM, gel, lead-acid, and lithium batteries

• N-BUS communication system for advanced power management

What’s Included

• 1 × NDS SCE 360 Sun Control 2 MPPT Solar Regulator

• Installation terminal block connections

• Built-in LED charging status indicators

Key Features

• Product Name: NDS Sun Control 2 MPPT Solar Regulator

• Brand: NDS

• Manufacturer Part Number: SCE360

• Product Code / SKU: 30963

• Maximum Solar Panel Power: 360W

• Nominal System Voltage: 12V

• Maximum Input Voltage: 30V

• Maximum Charging Current: 25A

• Battery Outputs: Leisure battery + starter battery maintenance

• Charging Stages: 5-stage charging curve with Opticharge algorithm

• Communication: N-BUS / CI-BUS compatible

• Cooling: Integrated cooling fan

• Dimensions: 151 × 90 × 48 mm

• Protection Fuse: 30A

• Condition: New

• Product Weight: Approx. 0.42 kg

Where It Fits

This solar regulator is designed for installation in:

• Touring caravans

• Motorhomes

• Campervans

• Van conversions

• Marine electrical systems

• Off-grid solar setups

It is normally installed close to the leisure battery inside the vehicle.

System Compatibility

Compatible with solar panel systems up to 360W total output.

Fitting Instructions

1. Mount the regulator close to the leisure battery inside the vehicle.

2. Connect the solar panel cables to the solar input terminals.

3. Connect the battery output terminals to the leisure battery.

4. If required, connect the starter battery output to maintain the vehicle battery.

5. Select the appropriate battery type charging profile.

6. Connect optional N-BUS display or monitoring devices if used.

7. Test the system and confirm charging status using the LED indicators.

Professional installation is recommended for solar electrical systems.

Product Summary

The NDS SCE 360 Sun Control 2 MPPT Solar Regulator (30963) is the heart of a modern caravan or campervan solar power system. By optimising energy from solar panels and managing safe multi-stage battery charging, it ensures your leisure batteries remain fully charged and protected.

With support for 360W solar systems, MPPT efficiency, dual solar inputs, and N-BUS smart monitoring, this regulator is ideal for caravan solar upgrades, campervan conversions, and motorhome off-grid power installations.
