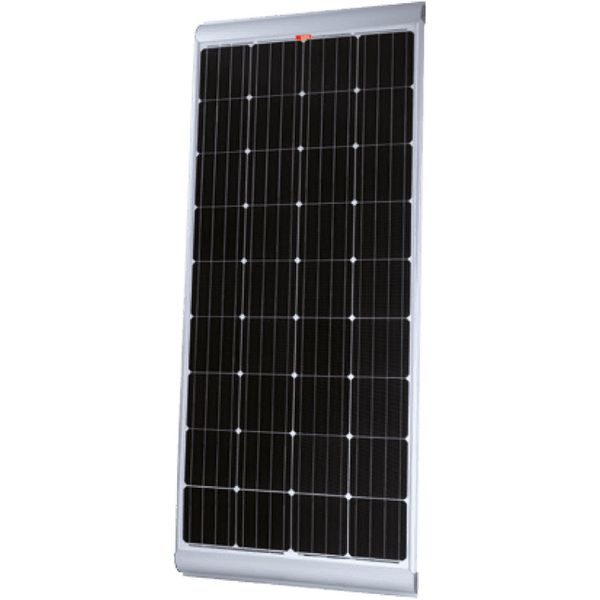

NDS Solenergy Rigid Solar Panel (175W / 1625mm x 676mm)

The NDS Solenergy Rigid Solar Panel 175W is a powerful and durable solar solution designed for caravans, motorhomes, campervans, boats, and off-grid vehicles. Built using high-efficiency monocrystalline photovoltaic cells, this panel provides reliable renewable energy for charging leisure batteries and powering onboard electrical systems.

Delivering 175W of solar output, this is one of the most powerful panels in the Solenergy range and is ideal for larger caravan and motorhome electrical setups. The panel uses high-purity silicon solar cells protected by textured tempered glass and EVA layers inside a robust aluminium frame, ensuring long-term durability and high energy efficiency.

Integrated aerodynamic mounting brackets with plastic side covers allow the panel to sit slightly raised from the roof, improving airflow and helping prevent performance loss due to heat buildup.

The panel also features bypass diodes, which protect the cells from over-voltage and allow the panel to continue generating power even if part of the panel becomes shaded.

This makes the Solenergy 175W panel ideal for caravan solar systems, campervan conversions, and motorhome off-grid power installations.

Why Choose This Solar Panel?

• Designed for caravans, motorhomes, campervans, and boats

• 175W high-efficiency solar power output

• Durable tempered glass and aluminium frame construction

• Integrated aerodynamic mounting brackets for easy installation

• Built-in bypass diodes to minimise power loss from shading

• Ideal for off-grid camping and leisure battery charging

What’s Included

• 1 × NDS Solenergy Rigid Solar Panel 175W

• Integrated aluminium mounting brackets

• Pre-installed 4m twin-core connection cable

Key Features

• Product Name: NDS Solenergy Rigid Solar Panel

• Brand: NDS

• Manufacturer Part Number: PSM175WP

• Product Code / SKU: 30975

• Maximum Power Output: 175W (±3%)

• Nominal Voltage: 12V system

• Open Circuit Voltage: 23.67V

• Voltage at Maximum Power: 19.56V

• Current at Maximum Power: 8.95A

• Short Circuit Current: 9.58A

• Panel Type: Rigid monocrystalline solar panel

• Dimensions: 1625 × 676 × 60 mm

• Cable Length: 4m (2 × 4 mm²)

• Condition: New

• Product Weight: Approx. 14.5 kg

Where It Fits

This rigid solar panel is suitable for installation on:

• Touring caravans

• Motorhomes

• Campervans

• Van conversions

• Boats and marine roofs

• Off-grid vehicles

The panel is typically installed on the vehicle roof using the integrated mounting brackets or solar spoiler mounts.

System Compatibility

Always confirm compatibility with your solar charge controller, battery system, and mounting hardware before installation.

Fitting Instructions

1. Choose a clean roof surface with maximum sunlight exposure.

2. Position the solar panel to avoid shading from roof vents or aerials.

3. Secure the panel using the integrated mounting brackets or solar spoiler mounts.

4. Route the 4m connection cable through a waterproof roof gland into the vehicle.

5. Connect the panel to a solar charge controller, then connect to the leisure battery.

6. Test the system to ensure correct battery charging operation.

Professional installation is recommended when installing full solar power systems.

Product Summary

The NDS Solenergy Rigid Solar Panel 175W (30975) provides a powerful and reliable solar energy solution for caravans, campervans, motorhomes, and marine installations. With its high-efficiency monocrystalline cells, robust aluminium construction, and integrated mounting brackets, it delivers dependable renewable power for charging leisure batteries and running onboard equipment.

Ideal for caravan solar upgrades, campervan conversions, and motorhome off-grid power systems, this panel ensures reliable performance and efficient energy generation wherever your travels take you.
