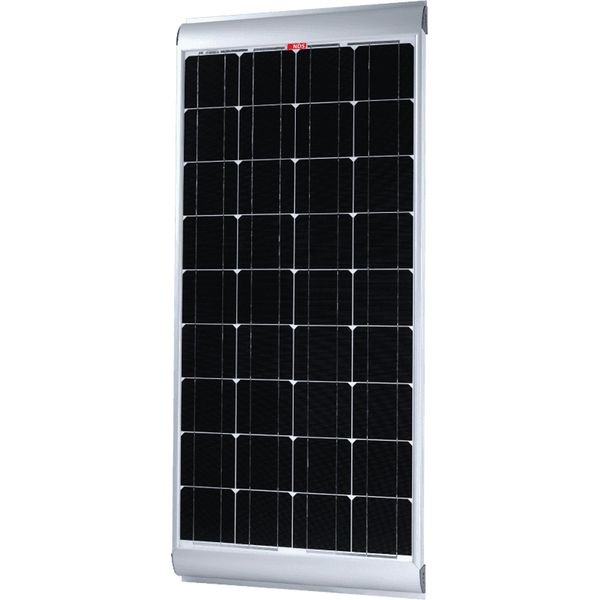

NDS Solenergy Rigid Solar Panel (85W / 1165mm x 530mm)

Please note there is a 7/10 day lead time on this product

The NDS Solenergy Rigid Solar Panel 85W is a compact and efficient solar panel designed for caravans, motorhomes, campervans, boats, and off-grid vehicles. Built with high-efficiency monocrystalline photovoltaic cells, the panel provides reliable renewable energy for maintaining and charging 12V leisure battery systems.

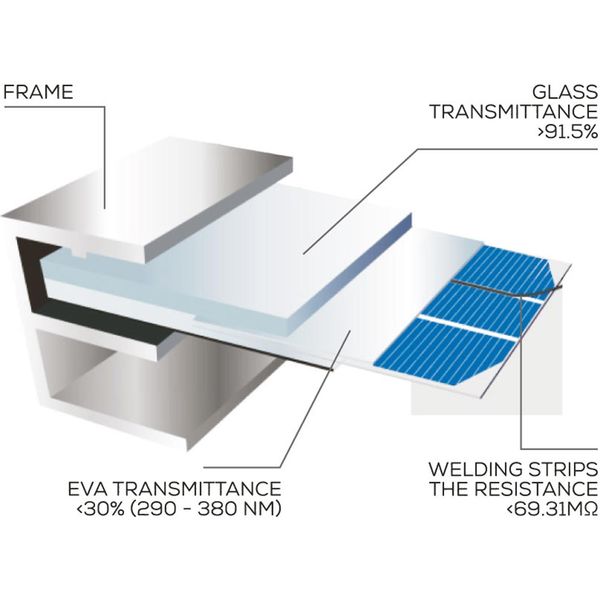

With an output of approximately 85W, this panel is ideal for smaller solar installations where roof space is limited but dependable battery charging is still required. The photovoltaic cells are constructed from high-purity silicon and protected by textured tempered glass, EVA layers, and a durable aluminium frame, ensuring long-term performance in outdoor environments.

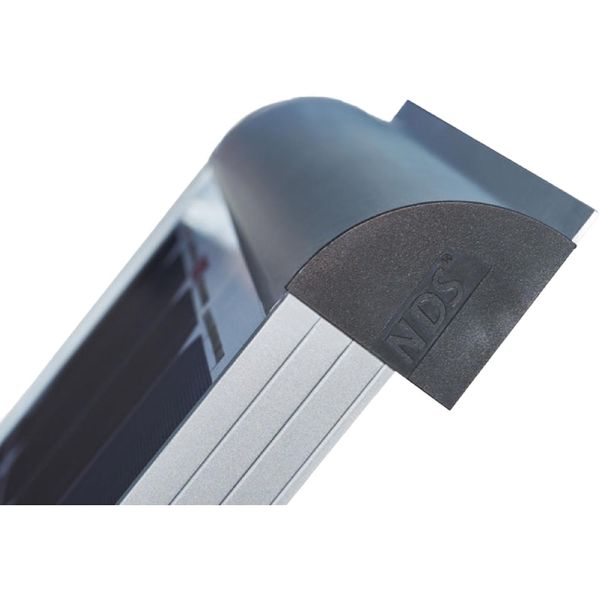

The panel includes integrated aluminium mounting brackets with aerodynamic side covers, allowing quick and secure roof installation while ensuring ventilation beneath the panel to prevent heat build-up and maintain efficiency.

With built-in bypass diodes, the panel can continue producing power even if part of the panel becomes shaded, helping maintain consistent energy generation.

This makes it an ideal choice for caravan solar systems, campervan conversions, and motorhome off-grid power setups.

Why Choose This Solar Panel?

• Designed for caravans, motorhomes, campervans, and boats

• 85W solar power output suitable for smaller installations

• High-efficiency monocrystalline solar cells

• Durable tempered glass and aluminium frame construction

• Integrated aerodynamic mounting brackets for easy installation

• Built-in bypass diodes to minimise shading power loss

What’s Included

• 1 × NDS Solenergy Rigid Solar Panel 85W

• Integrated aluminium mounting brackets

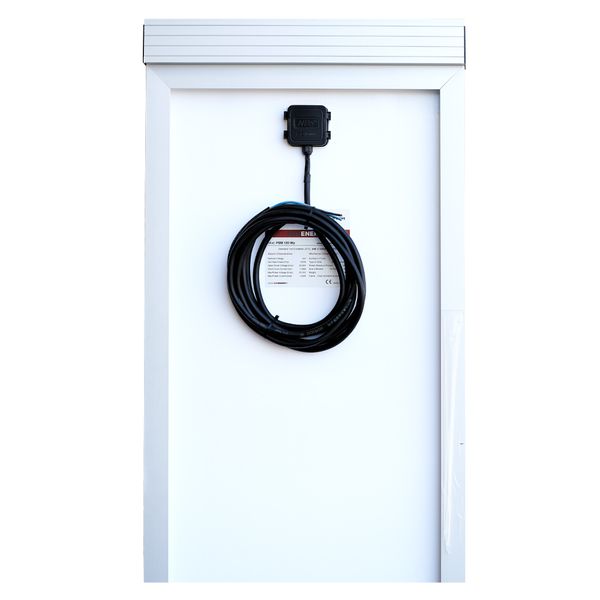

• Pre-installed 6m twin-core connection cable

Key Features

• Product Name: NDS Solenergy Rigid Solar Panel

• Brand: NDS

• Manufacturer Part Number: PSM85WP.2

• Product Code / SKU: 30971

• Maximum Power Output: 85W (±3%)

• Nominal Voltage: 12V system

• Open Circuit Voltage: 22.79V

• Voltage at Maximum Power: 18.83V

• Current at Maximum Power: 4.52A

• Short Circuit Current: 4.81A

• Panel Type: Rigid monocrystalline solar panel

• Dimensions: 1165 × 530 × 60 mm

• Cable Length: 6m (2 × 2.5mm²)

• Number of Cells: 36

• Condition: New

• Product Weight: Approx. 9 kg

Where It Fits

This rigid solar panel is suitable for installation on:

• Touring caravans

• Motorhomes

• Campervans

• Van conversions

• Boats and marine roofs

• Off-grid vehicles

The panel is typically mounted on the vehicle roof using the integrated mounting brackets or solar spoiler mounts.

System Compatibility

Always confirm compatibility with your solar charge controller, battery system, and mounting hardware before installation.

Fitting Instructions

1. Select a clean roof area with maximum sunlight exposure.

2. Position the solar panel where shading from vents or aerials is minimal.

3. Secure the panel using the integrated mounting brackets or solar spoiler mounts.

4. Route the 6m connection cable through a waterproof roof gland into the vehicle.

5. Connect the panel to a solar charge controller, then connect to the leisure battery.

6. Test the system to ensure the battery charges correctly.

Professional installation is recommended when installing complete solar electrical systems.

Product Summary

The NDS Solenergy Rigid Solar Panel 85W (30971) provides a reliable solar charging solution for caravans, campervans, motorhomes, and marine installations. Its high-efficiency monocrystalline cells, durable aluminium frame, and integrated mounting brackets make it a practical and dependable option for smaller solar setups.

Ideal for caravan solar upgrades, campervan conversions, and motorhome off-grid power systems, this panel delivers consistent renewable energy to help keep leisure batteries charged while travelling.
