Plastic Seagull IV X-1 and X-2 Water Purifiers Bracket Mounting Kit - 700063

Plastic Seagull IV X‑1 and X‑2 Water Purifiers Bracket Mounting Kit

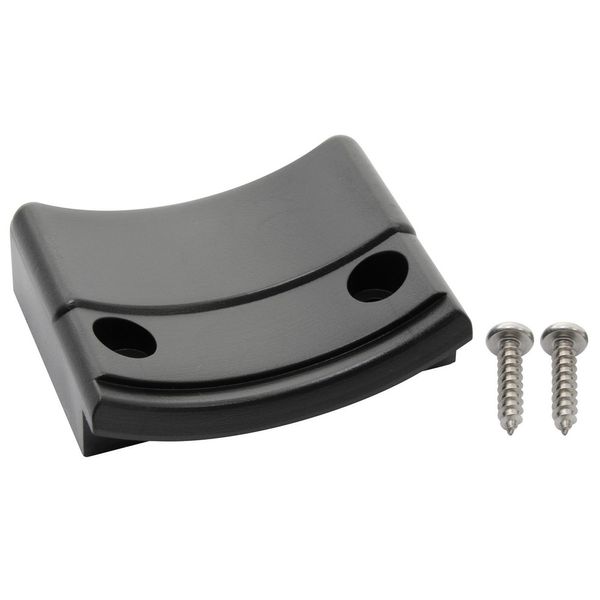

The General Ecology Plastic Bracket Mounting Kit (part number 700063) is designed to securely mount Seagull® IV X-1 and X-2 water purifiers in residential settings. The kit includes a plastic mounting bracket and two #8 x 3/4" screws, providing a stable installation for your water purification system.

Where This Goes

This plastic mounting bracket kit is used to securely locate your Seagull IV X-1 or X-2 water purification system inside a residential or boat/RV location, typically under a sink or in a cabinet where the unit will be connected to a cold-water supply. It provides a fixed support for the purifier housing so it doesn’t move, rattle, or put strain on the water connections.

Suggested installation locations:

• Under kitchen sink cupboard or vertical panel

• Boat galley cabinetry

• RV/motor home storage locker near water inlet

• Any vertical interior surface that can support the unit and provides easy access for servicing and cartridge changes

How It Is Fitted

Before You Start

✔ Confirm your water purifier is a Seagull IV X-1 or X-2 model.
✔ Choose a flat, vertical surface inside a cupboard or panel near the cold water supply and faucet connection so hoses won’t kink.
✔ Tools needed: drill (with suitable bit), screwdriver or driver, pencil, tape measure.

Step-by-Step Installation

1. Choose the mounting spot

   • Pick a location inside a cabinet or on a vertical panel close to the cold water supply and where the hoses will reach the purifier inlet and outlet without strain.

2. Mark the fixing holes

   • Hold the plastic bracket against the surface and use a pencil to mark the positions of the holes for the supplied screws.

3. Drill pilot holes

   • Drill small pilot holes at the marked points to make it easier to screw into the panel.

4. Fix the bracket

   • Align the bracket and secure it with the supplied screws, tightening until it’s firmly attached but not over-tightened.

5. Mount the purifier

   • Position the Seagull IV unit onto the bracket so the V-clamp or housing rests securely on the bracket lip.

6. Connect water lines

   • Once the appliance is bracket-mounted, connect your cold water supply to the purifier’s inlet and the purified water hose to your faucet or outlet, following the purifier’s standard plumbing instructions.

Quick Fit Notes

• Purpose: Mounting bracket for Seagull IV X-1 and X-2 water purifiers in residential or installed water systems.

• Ideal mounting location: Vertical interior surface — under sink, cupboard wall or panel.

• Includes: 1 plastic bracket + 2 mounting screws for easy installation.

• Benefits: Keeps purifier secure, supports water connections and provides easy access for maintenance and cartridge changes

• Tools needed: Drill, screwdriver/driver, pencil, tape measure.

Pro tip: Position the bracket where there’s access clearance around the purifier for hose connections on the inlet and outlet, and for future cartridge replacement without having to remove the entire unit from its mounting.
