Seagull Metal Bracket Mounting Kit with Screws for Seagull Water purification system. - 700060

Seagull Metal Bracket Mounting Kit with Screws for Seagull Water purification system. - 700060

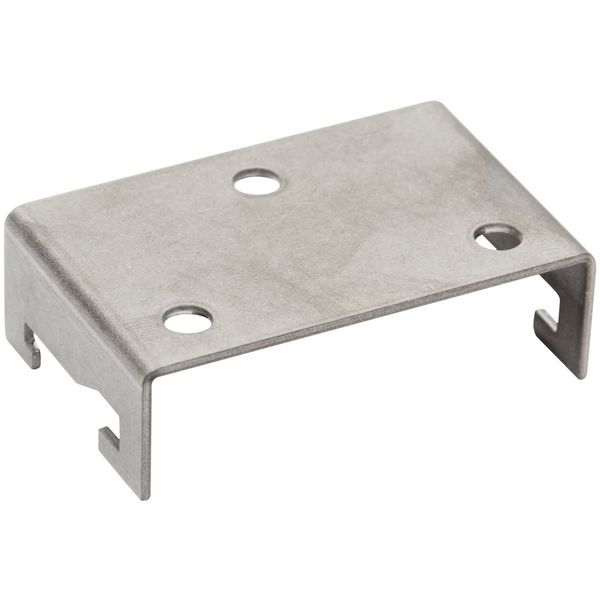

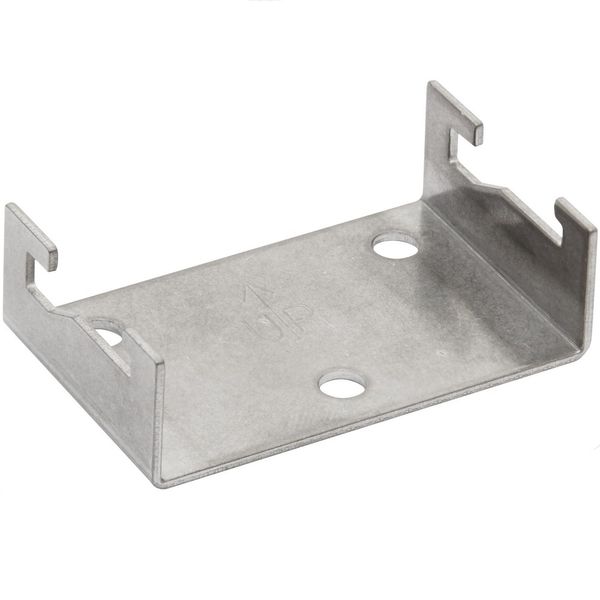

This metal mounting bracket kit is used to securely mount a Seagull IV water purification system (eg. X-1 or X-2 series) inside your vessel or RV/campervan installation, keeping the filter housing stable and accessible during use and servicing. It’s a support/clip bracket that holds the purification housing to an internal vertical surface (typically inside a sink cabinet or under a counter) using the supplied screws.

Where it is installed

Mount on a vertical interior surface such as:

• inside a kitchen cabinet under the sink

• van/campervan water locker or cupboard

• boat galley locker or storage area

The bracket keeps the purifier housing secure and upright and ensures there’s easy access to water connections and for future cartridge changes.

Best fit position:

• close to the cold water supply inlet and output to the faucet so hoses run neatly without excessive bending

• accessible for cartridge replacement and visual leak checks

How it is fitted

Before You Start

✔ Verify the purifier model (e.g., Seagull IV X-1 or X-2) and confirm that this mounting bracket (Part 700060) is suitable for it.
✔ Tools needed: drill (and appropriate bit for your surface), screwdriver (or power driver), pencil, tape measure.

Step-by-Step Installation

1. Choose the mounting location

   • Identify a vertical panel or cabinet wall inside the sink unit or storage area where the purifier will sit.

   • Ensure the location provides clear access to water inlet/outlet hoses and room for cartridge changes.

2. Mark the fixing holes

   • Hold the metal bracket against the chosen surface at the desired height.

   • Use a pencil to mark the screw holes through the bracket onto the mounting surface.

3. Drill pilot holes

   • Drill pilot holes at the marked points to help the screws enter cleanly (choose a bit size that’s slightly smaller than the screw diameter).

4. Secure the bracket

   • Align the bracket with the pilot holes.

   • Insert and tighten the supplied screws to fix the bracket firmly in place.

   • Ensure it is secure with no wobble.

5. Attach the Seagull purifier unit

   • Slide or clip the purifier housing onto the mounted bracket per your purifier’s fitment design (the purifier sits onto the bracket with the clamp holding it in place).

6. Connect water lines

   • Once the purifier is bracket-mounted, connect the cold water inlet hose and purified water outlet hose per the system instructions.

   • Check all water connections for proper seating and water tightness.

Quick fit notes

• Purpose: Mounting bracket for Seagull IV water purifier (RV/Marine use)

• Fits: Seagull IV X-1 and X-2 purifiers (clip bracket version with 3 screws)

• Installation location: Vertical interior surface (sink cabinet, storage wall, water locker)

• Fixings: Supplied metal bracket with screws for secure attachment

• Ideal scenario: Allows easy access for maintenance and cartridge changes

Pro tip: Before drilling, measure the purifier housing width and height to ensure the bracket mounts at a height that leaves enough space below for water connections and above for future cartridge access.
