Surf One Filter Cooker Hood - 01SURFONE045ST12

Surf One Filter Cooker Hood - 01SURFONE045ST12

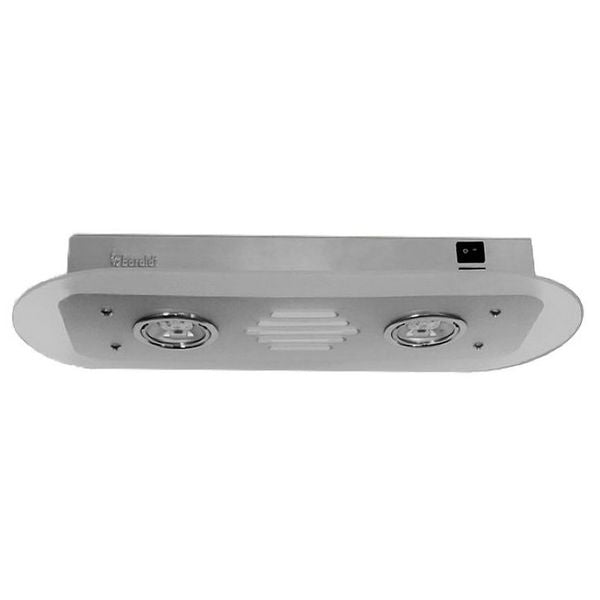

Baraldi are one of the leading manufacturers of extractor hoods in Italy, with 50 years experience in the market. The Surf one has a very innovative design which has no equal on the market. It is wholly made of stainless steel and satin plexiglass. This model doesn't have to be vented through the side wall or the roof of the vehicle, it utilises a carbon active filter that purifies aspired air. Complete with 2 x low 4000KW neutral white spotlights.Max power 2.65W.

The Surf One Filter Cooker Hood (01SURFONE045ST12) is installed inside a caravan, motorhome or campervan, directly above the cooker or hob.
It is a recirculating cooker hood, meaning it filters cooking fumes and odours through an internal filter rather than venting air outside the vehicle.

Typical installation locations:

• Under an overhead cupboard above the cooker

• Mounted to the underside of a wall cabinet

• Fixed to an interior wall panel above the hob

This hood is designed specifically for leisure vehicle kitchens, where external ducting is not always practical.

How is it fitted

Safety note:
This is a 12 V electrical appliance. Installation should be carried out by a competent person. Always isolate the 12 V supply before fitting.

Before you start

• Switch off the 12 V power supply

• Ensure the mounting surface is flat, rigid and heat-resistant

• Confirm there is adequate clearance above the cooker (as per vehicle/cooker guidance)

• Tools required: screwdriver, drill, small drill bit, measuring tape, pencil

Step-by-step fitting

1. Choose the mounting position

   • Position the hood centrally above the cooker/hob.

   • Ensure it is high enough to avoid direct heat but close enough to capture fumes.

2. Mark fixing points

   • Hold the cooker hood in place and mark the screw holes on the cupboard base or wall panel.

3. Prepare pilot holes

   • Drill small pilot holes at the marked positions to prevent splitting panels.

4. Secure the cooker hood

   • Fix the hood in place using the supplied screws.

   • Ensure it is firmly mounted and does not vibrate.

5. Electrical connection (12 V)

   • Connect the hood wiring to the vehicle’s 12 V DC supply:

     • Positive (+) to 12 V feed

     • Negative (–) to ground

   • Ensure wiring is routed safely away from heat sources.

6. Fit the filter

   • Insert the recirculating filter into the hood (if not pre-fitted).

   • Ensure it is seated correctly behind the intake grille.

7. Restore power & test

   • Reconnect the 12 V supply.

   • Switch the hood on and confirm the fan and light (if fitted) operate correctly.

Quick fit notes

• Product type: Recirculating cooker hood with filter

• Install location: Above cooker/hob (interior use)

• Mounting: Underside of cupboard or wall panel

• Power: 12 V DC

• Ventilation type: Filtered (no external ducting required)

• Use: Reduces cooking fumes, grease and odours

• Installation: Competent DIY or professional installer

Pro tip

Clean or replace the filter regularly to maintain airflow and odour control—especially important in compact caravan and motorhome kitchens.
