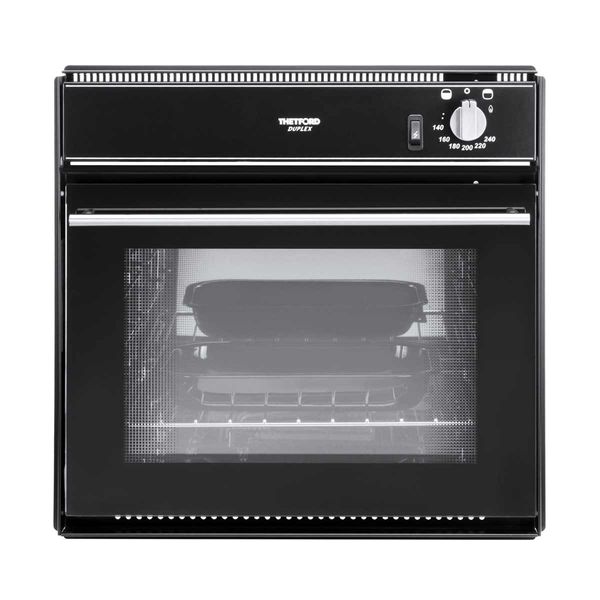

Thetford Duplex LPG Oven and Grill with 12V Ignition Black - SOG70998-SP

The Thetford Duplex LPG Oven and Grill with 12V Ignition (Model: SOG70998-SP) is a combined oven and grill unit designed for use in caravans, campervans, and motorhomes. It operates on LPG gas and features a 12V electric ignition system for easy lighting. The appliance offers a 36-litre oven capacity and includes two burners—one dedicated to the oven and one to the grill—providing versatile cooking options in a compact space.

Key Features:

• Dual Burners: Separate burners for the oven and grill, each with a heat input of 1.6 kW.

• 12V Ignition: Electric spark ignition system powered by a 12V supply for convenient lighting.

• Compact Design: Overall dimensions of 445 mm (H) x 456 mm (W) x 490 mm (D), making it suitable for various mobile living spaces.

• High-Quality Materials: Constructed with durable components and a stainless steel interior for easy cleaning.

Installation Instructions:

Note: Installation should be performed by a qualified gas engineer to ensure safety and compliance with local regulations.

1. Preparation:

   • Safety First: Ensure all gas supplies are turned off before beginning installation.
   • Check Dimensions: Verify that the installation space accommodates the oven's dimensions: 445 mm (H) x 456 mm (W) x 490 mm (D).

   • Ventilation: Confirm that the installation area has adequate ventilation as per local building codes.

2. Positioning the Oven:

   • Secure Placement: Place the oven into the designated cavity, ensuring it sits level and is properly supported.
   • Clearances: Maintain the manufacturer's recommended clearances from combustible materials.

3. Gas Connection:

   • Connection Point: The oven is equipped with a 5/16” spigot for gas inlet connection.

   • Piping: Use appropriate gas piping to connect the oven to the LPG supply, ensuring all connections are secure and leak-free.
   • Testing: After connection, perform a leak test using a suitable gas leak detection solution.

4. Electrical Connection:

   • 12V Supply: Connect the oven's ignition system to a 12V DC power supply, ensuring correct polarity.
   • Fuse Protection: Incorporate an appropriate fuse in the circuit to protect against electrical faults.

5. Securing the Oven:

   • Fixing Points: Use the provided fixing points to secure the oven within the cavity, preventing movement during transit.
   • Sealing: Apply heat-resistant sealant around the edges to prevent ingress of debris and ensure a neat finish.

6. Final Checks:

   • Functionality Test: Turn on the gas supply and test the oven and grill functions to ensure proper operation.
   • User Instruction: Provide the user with the manufacturer's manual and explain the basic operation and safety precautions.

Key Features:

• Flame Failure Device: Safety feature on valves to prevent gas leaks.
• Oven Shelf: Provides versatile cooking options.
• Multifunctional Pan: Includes a detachable handle and pan trivet for added convenience.
• High-Quality Materials: Built with premium components for durability and performance.
• Space-Efficient Design: Optimized to make the most of your kitchen space.
• Superior Cooking Performance: Ensures excellent results every time.

Specifications:

• Gas Inlet Connection: 5/16” spigot for easy installation.

The Duplex 12V oven and grill is the perfect addition to any kitchen, offering both style and substance with its high-quality construction and superior cooking capabilities.
