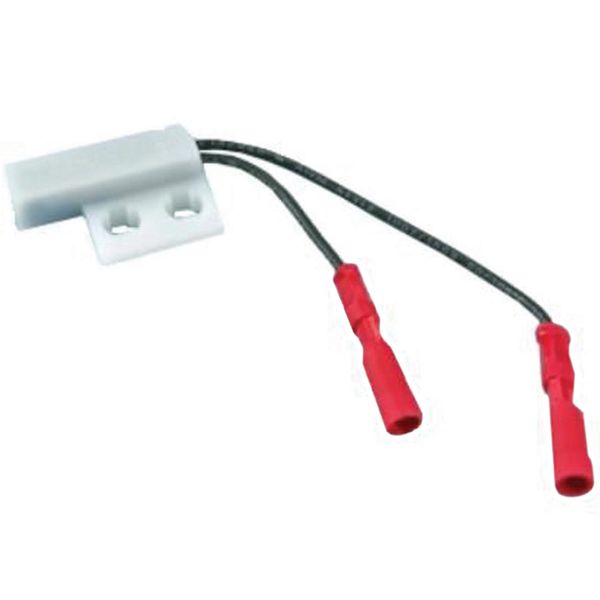

The Thetford Reed Switch for C200 Toilet (Product code: 23714) is a small but important electrical component used in the Thetford C200 cassette toilets. Here’s what the reed switch does:
1. Tank Level Indicator:
- The reed switch is part of the toilet’s waste holding tank level indicator system. It works in conjunction with a float inside the holding tank. As the tank fills with waste, the float rises, and when it reaches a certain level, the reed switch is triggered.
2. Activates Full Tank Indicator:
- When the reed switch is activated by the float reaching a predetermined level, it sends an electrical signal to the toilet’s control panel or indicator light. This signal is used to activate the “full tank” warning light or indicator on the toilet’s control panel, alerting the user that the waste holding tank needs to be emptied.
3. Magnetic Operation:
- The reed switch operates using a magnetic field. As the float (which contains a magnet) moves up and down with the waste level, it influences the reed switch. When the magnet in the float comes close to the reed switch, the magnetic field causes the contacts in the reed switch to close, completing the electrical circuit.
4. Maintenance and Replacement:
- Over time, reed switches can wear out or fail, leading to inaccurate or non-functional tank level indicators. Replacing a faulty reed switch with this part (23714) will restore the proper functioning of the tank level indicator system.
5. Ensures Proper Waste Management:
- By providing accurate feedback on the tank’s fill level, the reed switch helps prevent overfilling, which can lead to leaks, unpleasant odors, or damage to the toilet system. It ensures that users know when it’s time to empty the tank, helping to maintain hygiene and proper operation.
The Thetford Reed Switch for C200 Toilet (23714) is a key component of the toilet’s waste holding tank level indicator system. It detects the level of waste in the tank and triggers the full tank warning light, helping users manage their toilet waste effectively and preventing overfilling issues.
