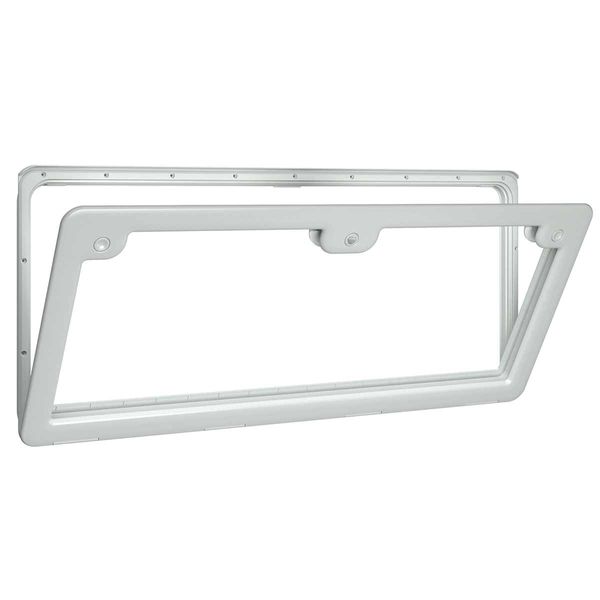

Thetford Service Door Model 6 2686480 White

The Thetford Service Door Model 6 (2686480) is a high-quality external access door designed for caravans, motorhomes, campervans, and off-grid vehicles. It provides convenient access to storage compartments such as water tanks, gas lockers, and general luggage areas.

With its large opening size, this service door is ideal for accessing bigger storage spaces, making it perfect for storing bulky items and equipment. The door measures approximately 1039mm (W) × 469mm (H) with an opening size of 980mm × 400mm, offering excellent accessibility.

Manufactured from durable, lightweight plastic, the door is designed to withstand outdoor conditions while remaining easy to clean. It features a double seal system for water resistance and insulation, ensuring long-term durability and protection from the elements.

How This Service Door Works

A service door provides external access to internal storage compartments in caravans and motorhomes.

Typical Installation

Caravan / Motorhome Wall
→ Service Door Frame Installed in Cut-Out
→ Hinged Door Access
→ Internal Storage Compartment

Function of the Door

External Access

• Allows easy access to storage areas from outside the vehicle.

Secure Locking

• Equipped with push-button locks and key cylinder for safety.

Weather Protection

• Double seal prevents water ingress and improves insulation.

This makes it ideal for safe, secure, and convenient storage access.

Why Choose Thetford Service Door Model 6?

• Large access door for storage compartments

• High-quality Thetford construction

• Weatherproof and UV-resistant design

• Secure push-button locking system with key

• Suitable for caravans, motorhomes and campervans

• Easy to install in pre-cut wall openings

What’s Included

• 1 × Thetford Service Door Model 6 (White)

• Integrated frame and door assembly

• Built-in push-button locks with key cylinder

Key Features

• Product Name: Thetford Service Door Model 6

• Brand: Thetford

• Manufacturer Part Number: 2686480

• Product Code / SKU: 2686480

• Colour: White

• Main Dimensions: 1039 × 469 mm

• Opening Dimensions: 980 × 400 mm

• Cut-Out Dimensions: 997 × 419 mm

• Wall Thickness Compatibility: 23–39 mm

• Locking System: 3 push-button locks with cylinder

• Material: Lightweight durable plastic

• Condition: New

• Product Weight: Approx. 2.8 kg

Where It Fits

This service door is designed for installation on:

• Touring caravans

• Motorhomes

• Campervans

• Van conversions

• Off-grid vehicles

It is commonly used for access to:

• Water tank compartments

• Gas storage lockers

• General storage areas

• Equipment compartments

Suitable For Vehicles

This product is commonly used in:

• VW Transporter campervans (T5 / T6 / T6.1)

• Fiat Ducato motorhomes

• Peugeot Boxer motorhomes

• Citroen Relay campervan conversions

• Ford Transit campervans

Touring caravans including:

• Bailey

• Swift

• Elddis

• Coachman

• Lunar

Ideal For

This product is ideal for:

• Caravan storage access solutions

• Motorhome locker door replacements

• Campervan conversion storage systems

• Van conversion access panels

• Off-grid vehicle storage compartments

• Water tank and gas locker access

System Compatibility

Compatible with walls between 23–39mm thickness and suitable for most caravan and motorhome builds.

Fitting Instructions

1. Mark and cut the required aperture (997 × 419 mm cut-out).

2. Insert the service door frame into the opening.

3. Secure the frame using appropriate screws and sealant.

4. Apply waterproof sealant around the edges.

5. Fit and test the door to ensure smooth opening and secure locking.

6. Check seals for watertight installation.

Professional installation is recommended for best results.

Product Summary

The Thetford Service Door Model 6 (2686480) is a large, durable external access door designed for caravans, campervans, motorhomes, and off-grid vehicles. With its wide opening, secure locking system, and weatherproof construction, it provides reliable and convenient access to storage compartments.

Perfect for caravan upgrades, motorhome repairs, and campervan conversions, this service door offers a practical and professional solution for external storage access.
