Thetford Topline 931 Series 3 Burner LPG Hob Black - HB93199-SP

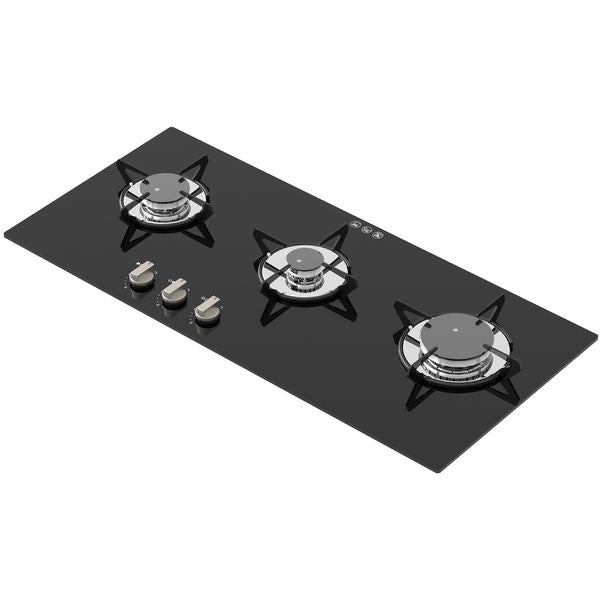

The Thetford Topline 931 Series 3 Burner LPG Hob in Black (Model: HB93199-SP) is a high-quality cooking appliance designed for use in caravans, motorhomes, and marine environments. It features a sleek black glass surface with three gas burners, offering a modern aesthetic and efficient cooking capabilities.

Key Features:

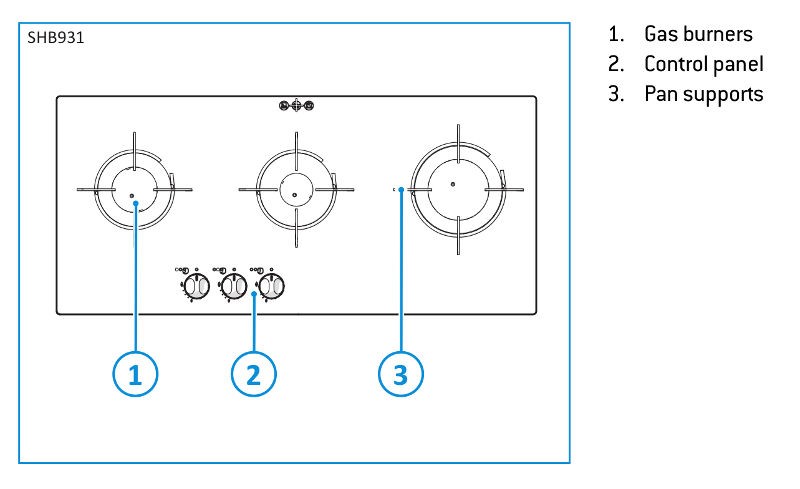

• Three Gas Burners: Provides versatile cooking options with burners of varying sizes to accommodate different pots and pans.

• Black Glass Surface: Offers a contemporary look and is easy to clean, maintaining a polished appearance.

• 12V Ignition System: Ensures easy and reliable ignition of the burners.

• Flame Failure Devices: Enhances safety by automatically shutting off the gas supply if the flame extinguishes unexpectedly.

Specifications:

• Dimensions: Width: 950mm, Depth: 350mm.

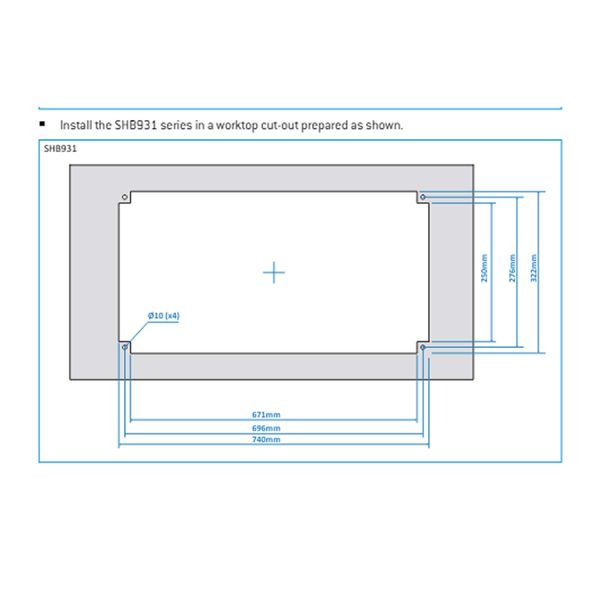

• Worktop Cut-Out Dimensions: Width: 740mm, Depth: 322mm.

• Total Heat Input: 5.0 kW.

• Burner Outputs: 1 x 1.5 kW, 1 x 1.0 kW, 1 x 2.5 kW.

• Weight: 6.0 kg.

Installation Instructions:

1. Preparation:

   • Safety First: Ensure all gas supplies are turned off before beginning installation.
   • Check Dimensions: Verify that the installation space accommodates the hob's dimensions and that the worktop cut-out matches the specified measurements.

2. Cut-Out Creation:

   • Marking: Accurately mark the cut-out dimensions on the worktop.
   • Cutting: Use appropriate tools to create the cut-out, ensuring clean edges for proper fitting.

3. Positioning the Hob:

   • Placement: Insert the hob into the cut-out, ensuring it sits flush with the worktop surface.
   • Sealing: Apply a suitable heat-resistant sealant around the edges to prevent ingress of debris and ensure a neat finish.

4. Gas Connection:

   • Connection Point: The hob is equipped with a gas inlet for connection to the LPG supply.
   • Piping: Use appropriate gas piping to connect the hob to the LPG supply, ensuring all connections are secure and leak-free.
   • Testing: After connection, perform a leak test using a suitable gas leak detection solution.

5. Electrical Connection:

   • 12V Supply: Connect the hob's ignition system to a 12V DC power supply, ensuring correct polarity.
   • Fuse Protection: Incorporate an appropriate fuse in the circuit to protect against electrical faults.

6. Final Checks:

   • Functionality Test: Turn on the gas supply and test each burner to ensure proper operation.
   • User Instruction: Provide the user with the manufacturer's manual and explain the basic operation and safety precautions.

Maintenance Tips:

• Regular Cleaning: Clean the glass surface and burners regularly to maintain efficiency and appearance.

• Inspection: Periodically check gas connections and the condition of burners for signs of wear or damage.
