Truma Spacer Plate Kit 60010-66000

Truma Spacer Plate Kit

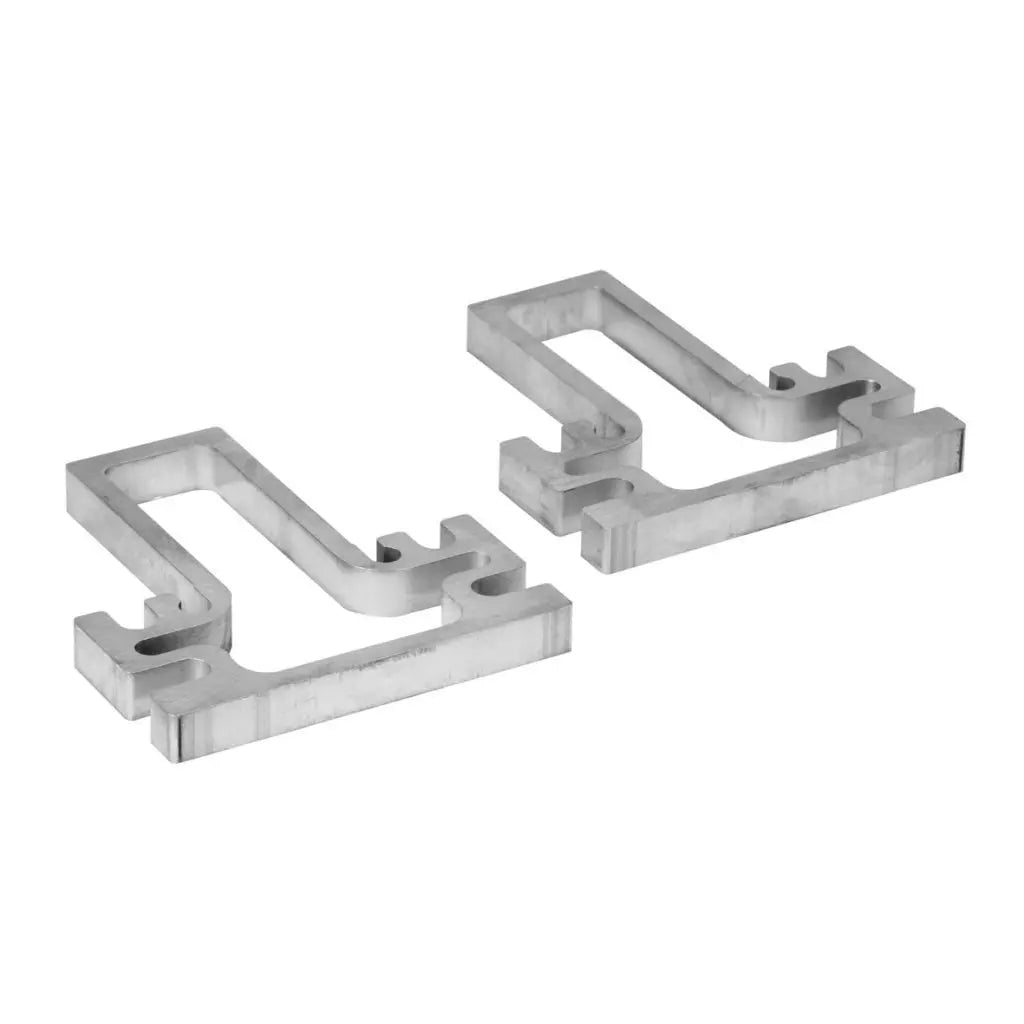

The Truma Spacer Plate Kit (Part No. 60010-66000) is a genuine Truma accessory designed for use with Truma caravan mover systems. The kit contains two 15 mm spacer plates that are used to compensate for height differences between the mover mounting frame and the caravan chassis during installation.

These spacer plates allow installers to adjust the mounting height of the mover so that the drive rollers align correctly with the caravan wheels, ensuring proper operation and traction. Up to three spacer plate kits can be used together, providing a maximum height adjustment of 45 mm if required.

This kit is commonly used on caravans where the chassis height requires additional spacing for correct mover installation.

Why Choose This Spare Part

• Original Truma spare part – Part No. 60010-66000.

• Designed for Truma caravan mover installation systems.

• Compensates for chassis height differences during installation.

• Helps ensure correct drive roller positioning against the tyres.

• Multiple kits can be combined for up to 45 mm height adjustment.

Spacer plates are often required when fitting movers to caravans with different chassis heights or frame designs.

Key Features

• Spacer plate set for Truma caravan movers

• Two 15 mm spacer plates included

• Allows height compensation during installation

• Can use up to three kits for 45 mm total spacing

• Genuine Truma part 60010-66000

Technical Specifications

Where and How to Fit This Product

The Truma Spacer Plate Kit (60010-66000) is fitted between the caravan chassis and the Truma mover mounting cross-member.

Installation Overview

1. Position the Truma mover assembly under the caravan chassis during installation.

2. If the chassis height prevents the rollers from aligning with the tyre centre, insert the spacer plates between the mover cross-member and chassis frame.

3. Fit the 15 mm spacer plates on each side as required.

4. Use extended mounting bolts or U-bolts supplied with the mover installation kit.

5. Secure all bolts and ensure the drive rollers sit at the correct height relative to the tyre centre.

Up to three spacer plate kits can be stacked together if additional height compensation is required during installation.

Installation should be carried out by a qualified caravan technician or experienced installer to ensure the mover system operates safely and correctly.

What’s Included

• 2 × Truma Spacer Plates (15 mm each)

• Spacer kit for caravan mover installation

(Mounting bolts, U-bolts and mover system components are not included unless supplied separately.)

Why Buy This Spare Part?

If you are installing a Truma caravan mover and the chassis height prevents correct roller alignment, the Truma Spacer Plate Kit (Part No. 60010-66000) provides the necessary height adjustment to achieve proper installation. Using the correct Truma spacer plates ensures the mover operates smoothly and maintains reliable traction when manoeuvring your caravan.
