Underslung Water Tank 92 Litres for Ducato L2/L3/L4 LWB (Black)

Underslung Water Tank 92 Litres for Ducato L2/L3/L4 LWB (Black)

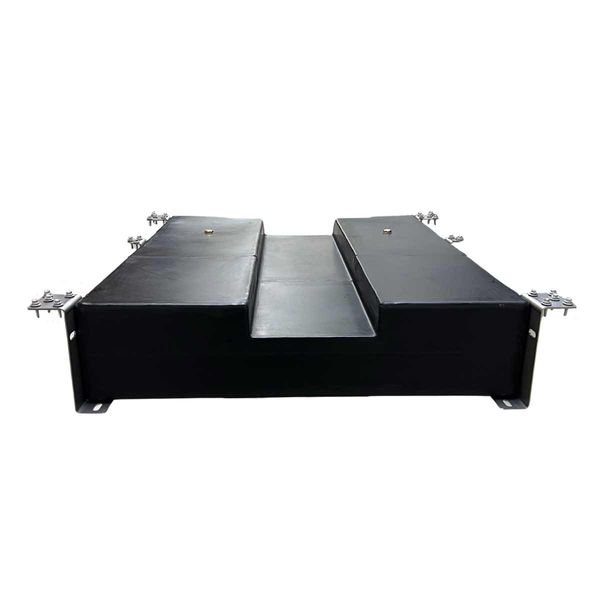

The Underslung Water Tank 92 Litres for Ducato L2/L3/L4 LWB – Black is a vehicle-specific water storage solution made for Fiat Ducato (LWB/L2/L3/L4) campervans and conversions, also compatible with Peugeot Boxer and Citroën Relay vans of equivalent sizes. Designed to mount under the vehicle body, it maximises interior space while supplying a generous 92 L of fresh or waste water capacity.

Product Overview

Manufactured from durable black polymer, this 92 L underslung water tank offers a strong, weather-resistant reservoir for use in campervan, motorhome and van conversions. Its position under the vehicle helps preserve interior room for living space, storage or other equipment.

• Capacity: ~92 litres

• Material: Robust black plastic body

• Colour: Black

• Weight: ~12 kg empty

• Dimensions: ~890 mm (L) × ~760 mm (W) × ~195 mm (H) (approx. nominal)

• Suitable Vehicles: Fiat Ducato (2006 onwards) LWB models L2/L3/L4; Peugeot Boxer and Citroën Relay vans of similar size and model years — left-hand drive variants

• Brand / Manufacturer: Wydale Plastics (UK)

Why Choose This Water Tank

• High capacity: Large 92 L volume for extended fresh water or waste holding in touring conversions.

• Underslung fitment: Saves internal living space by mounting beneath the chassis.

• Versatile use: Can serve as either a fresh water or a waste water tank depending on plumbing setup.

• Compatibility: Designed for test-fit with popular Ducato van sizes (L2, L3, L4); also suits Boxer/Relay.

Kit Contents

This listing is primarily for the tank body only. Depending on where you purchase it from, what is typically included with the tank:

• 1 × 92 L Underslung Water Tank (Black)

• 1 × 5″ internal lid for maintenance access

• 1 × 1/2″ BSP female outlet

• 1 × 1 1/4″ BSP female outlet

• 2 × pre-installed 1/2″ BSP vents

Note: Fitting brackets and plumbing accessories are usually sold separately (see accessories section below).

Simplified Fitting Instructions

Installing an underslung tank typically involves:

1. Preparation:

   • Ensure the vehicle is safely supported (ramps/stands) and free of obstacles under the chassis.

   • Choose a location along the chassis frame where the tank sits clear of suspension, brake and fuel lines.

2. Mount Brackets (sold separately):

   • Attach the appropriate underslung tank fitting kit to the vehicle’s chassis rails — this provides secure anchor points.

3. Position Tank:

   • Lift the water tank into position on the brackets and align the pre-moulded threaded insert points with the fitting kit hardware.

   • Bolt the tank securely to the brackets, ensuring it does not contact other components or ground surfaces.

4. Plumbing Connections:

   • Connect the outlet to your freshwater system feed or waste discharge line via appropriate pipe/hose and clamps.

   • Fit a vent line to each vent port to equalize air when filling/emptying.

   • Use thread tape on BSP connections for a watertight seal.

5. Test:

   • Partially fill the tank with water, check all connections for leaks, then complete the plumbing once confirmed.

Tip: Always seal any drilled holes or exposed chassis metal to prevent corrosion, and route hoses away from heat or moving parts.

Compatibility & Use

Ideal for motorhome, campervan and van conversions, this underslung tank is best for Ducato L2/L3/L4 long wheelbase vehicles where extra storage capacity for fresh or grey water is needed — especially when interior space is at a premium. It also adapts to Peugeot Boxer and Citroën Relay conversions using similar underslung layouts.

If you plan to combine this with another underslung tank (e.g., a 62 L unit), dual fitting and plumbing kits are available to create fresh + waste systems.

Optional Accessories (sold separately)

• Fitting Kit for 92 L Ducato L3/L4 Underslung Water Tank · £58.74 Hardware to mount the tank under chassis.

• Single Tank Plumbing Kit – Hoses and connectors for single tank setup.

• Twin Tank Fitting/Plumbing Kits – For combined 62 L + 92 L systems.

Benefits at a Glance

• Adds substantial water capacity for long trips without interior loss.

• Flexible plumbing options for fresh or waste systems.

• Durable UK-made construction from a respected plastics manufacturer.

• Compatible with popular Ducato LWB campervan platforms
