Whale Electrical Assembly 1.5kW For Whale Expanse Space Heater - AK1280

Whale Electrical Assembly 1.5kW For Whale Expanse Space Heater - AK1280

Where does it go?

4

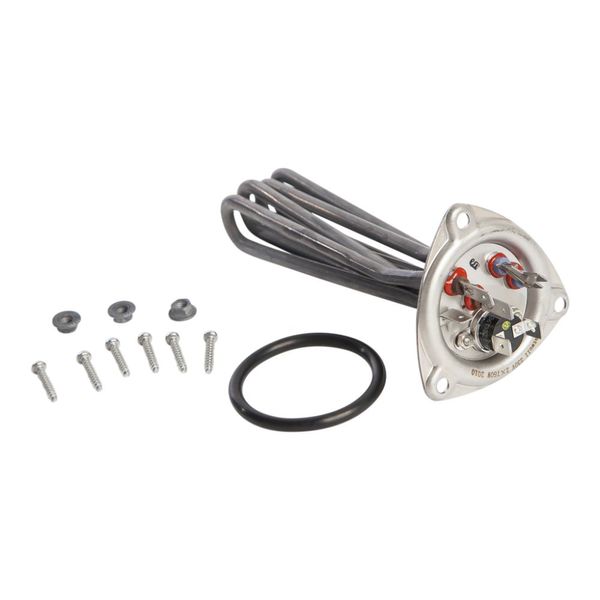

The Whale Electrical Assembly 1.5 kW (AK1280) is an internal electric heating module that fits inside a Whale Expanse space heater.
It provides the 230 V electric heating function (1.5 kW output) and is used either as a replacement electric element or when converting/repairing the electric side of the heater.

It installs within the heater’s service/electronics compartment and is not user-accessible once fitted.

Typical applications:

• Caravans

• Motorhomes

• Campervans

• RVs fitted with Whale Expanse gas & electric space heaters

How is it fitted

Important safety notice:
This component operates on 230 V mains electricity. Installation must be carried out by a competent or qualified installer. Always isolate 12 V and 230 V supplies before fitting.

Before you start

• Switch off and isolate 230 V mains and 12 V DC supplies.

• Allow the heater to cool fully.

• Confirm compatibility with Whale Expanse space heater models.

• Tools typically required: screwdriver set, insulated tools, torque driver (recommended).

Step-by-step fitting

1. Access the space heater

   • Locate the Whale Expanse space heater (commonly under a seat, bed, or cupboard).

   • Remove the service cover/panel to expose the internal components.

2. Locate the electric heating bay

   • Identify the electric element mounting position inside the heater casing.

   • Disconnect and remove the existing electrical assembly if replacing.

3. Install the 1.5 kW electrical assembly

   • Position the AK1280 electrical assembly into the designated mounting slot.

   • Ensure it sits fully and correctly aligned.

4. Secure the assembly

   • Fix the unit using the manufacturer’s mounting screws or retaining points.

   • Do not overtighten.

5. Connect the wiring

   • Connect the 230 V supply wiring to the electrical assembly as per the Whale wiring diagram.

   • Ensure all terminals are tight and cables are routed clear of hot surfaces.

6. Reassemble the heater

   • Refit internal covers and the external service panel.

   • Check seals and fixings are correctly seated.

7. Restore power & test

   • Reconnect 12 V and 230 V supplies.

   • Test heater operation in electric mode via the control panel.

   • Confirm correct heat output and no fault indications.

Quick fit notes

• Product type: Internal electric heating assembly

• Power output: 1.5 kW (230 V AC)

• Fits: Whale Expanse space heaters

• Location: Inside heater service compartment

• Function: Provides electric heating operation

• Installation: Professional / competent installer required

• Not user serviceable once installed

Pro tip

If the heater does not operate on electric mode after installation, check:

• Mains supply availability

• Control panel electric mode selection

• Correct seating of the electrical assembly and wiring connections

compatible with various models of the Whale Expanse Space Heater, including DW0801UR, DW8202OR, DW8212UR, IW0801OC, IW0801UB, IW0801UR, IW8212UR, WW0801OC, WW0801UB, WW0801UC, WW0801UR, SETWL8202A, SETWL8212A, WL8202OR, WL8212UR, SETWL8212D, SETWL8212E, and SETWL8212F.

the delivery time on this item is 5/7 Weeks
