Whale Grey IC Auto Waste System 12V - WM8284

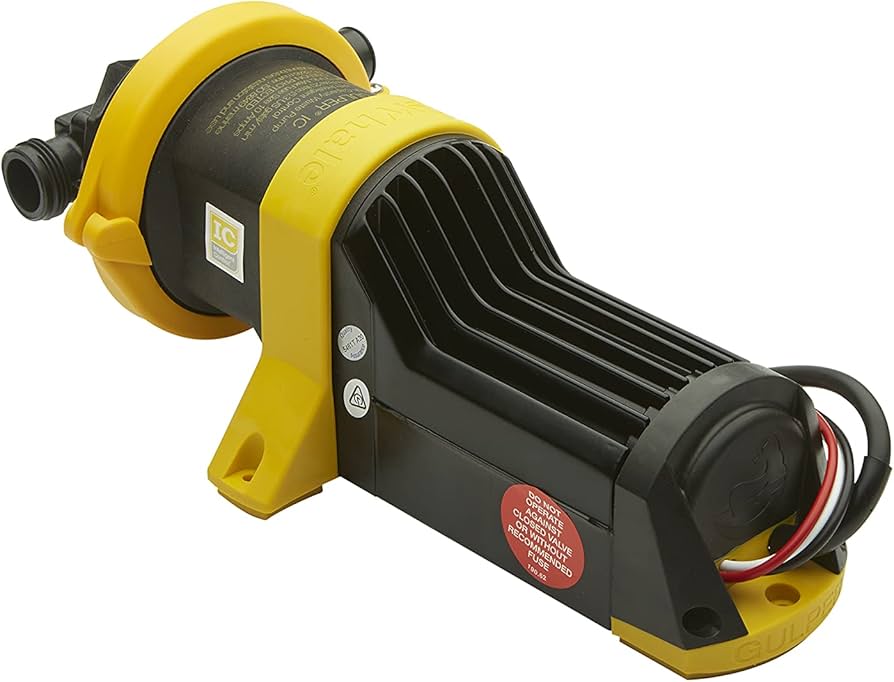

Whale Grey IC Auto Waste System – 12V Automatic Grey Water Pump

The Whale Grey IC Auto Waste System 12V is a pre-wired automatic grey waste management kit designed to evacuate grey water from showers, sinks and other drains without the need for a bulky waste tank or manual switching. It uses intelligent control technology to detect waste levels and automatically operate the pump, making it a “fit-and-forget” solution for caravans, motorhomes, RVs and boats.

Why Choose This Grey Waste System?

• Automatic Intelligent Control: Built-in controller senses when waste water needs pumping and activates the system — no manual switches required.

• Pre-wired Plug & Play: Supplied as a ready-to-install unit with wiring and components pre-assembled for straightforward setup.

• Ideal Space-Saving Solution: Eliminates the need for a dedicated grey waste tank while still handling waste from multiple drains.

• Fast & Reliable Drainage: High-capacity pump capable of processing up to ~19 L per minute.

• Soft Start/Stop: Protects pump longevity by reducing stress during operation.

• Self-Priming & Dry-Run Capable: Can self-prime and continue operation even if briefly running dry.

• Robust Build: Fully potted electronics and marine-grade materials protect against water ingress and harsh environments.

Key Features

• Model: Grey IC Auto Waste System (12V DC)

• Voltage: 12 V DC operating range (nominal 10–13.6 V)

• Pump Flow Rate: ~19 L/min (5 US gal/min) at 1 m head

• Maximum Head & Suction Lift: ~4 m combined

• Maximum Recommended Head: ~3 m

• Current Protection: ~10 A fuse recommended

• Hose Connections: Accepts 19 mm (¾″) and 25 mm (1″) hose sizes

• Weight: ~1.6 kg (approx)

• Fully Automatic Control: Two-way manifold IC senses water need and switches the pump accordingly.

• Certifications: CE and ISO8846 marine safety certified

It is important to ensure that a vented anti-syphon loop is incorporated in the system.

What’s Included

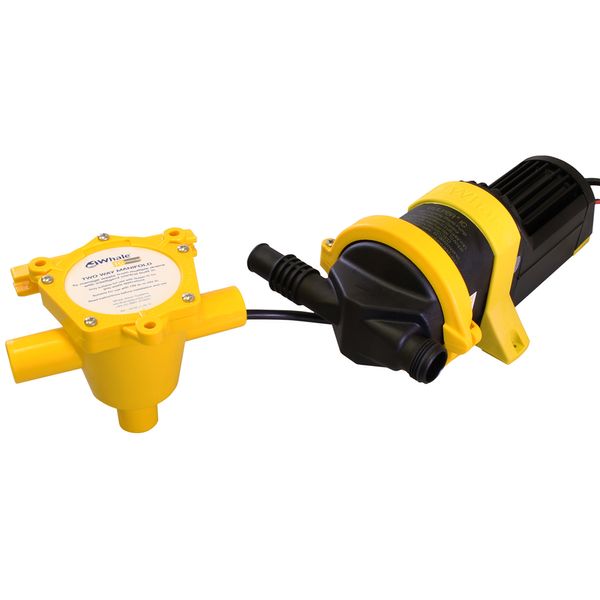

✅ Complete Whale Grey IC Auto Waste System 12V (pump + manifold control + wiring)
Hoses, anti-siphon loops and additional fittings not included.

Benefits

• ✔ Automatic Operation: Intelligent sensing removes the need for manual pump control.

• ✔ High Capacity: Capable of draining water quickly for showers, sinks or combined drains.

• ✔ Easy Installation: Pre-wired unit reduces installation time and complexity.

• ✔ Low Maintenance: No filters or complex mechanisms to clog, reducing upkeep.

• ✔ Space-Efficient: Removes dependence on traditional waste tanks, ideal for compact builds.

Ideal For

• Caravan and motorhome shower and sink waste management

• Boat and marine grey water systems where space or tank usage is restricted

• RV and campervan conversions needing automatic waste removal solutions

• Users who prefer “set-and-forget” plumbing systems

Installation Notes

• Position the Grey IC manifold high enough to sense waste levels from connected drains.

• Incorporate a vented anti-siphon loop in the discharge line to ensure proper drainage.

• Ensure wiring is protected and fused appropriately to match the 12 V system
