Whale 'Rapid Heat' 8 Litre Storage Water Heater Gas & Electric - WH0802

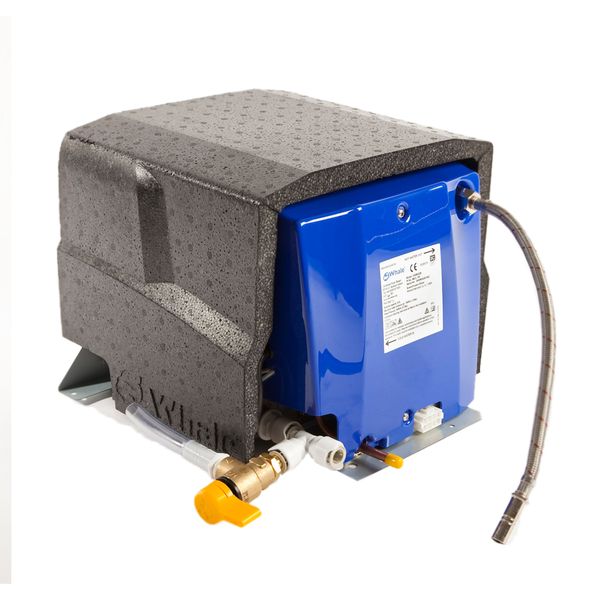

Whale 8-litre Rapid Heat Water Heater.

Specs:

• Capacity: 8 litres

• Pressure relief valve setting: 2.6 bar

• Maximum water inlet pressure: 1.9 bar

• Gas type: Butane and Propane

• Heat input (net): 1.25kw

• Gas consumption: 93 g/hr

• Gas connection: 8mm OD copper tube

• Supply: 12V DC + 230V AC 50Hz

• Electric lowest Eco setting: 750W

• Electric highest setting: 1500W

• Max. current consumption: (12V): 0.36 Amp (0.01 Amp on standby)

• Max. current consumption: (230V): 3.25/6.5 Amp

• Weight: 8kg (dry weight)

NOTE: All Whale Water Heaters must be installed and serviced by a fully qualified gas engineer in accordance with the appropriate installation instructions.

Installing the Whale 'Rapid Heat' 8 Litre Storage Water Heater (Gas & Electric) requires careful attention to detail to ensure safety and optimal performance. Below is a step-by-step guide to assist you through the installation process:

1. Preparation:

• Safety First: Ensure all power sources (gas and electricity) are turned off before beginning the installation.

• Read the Manual: Familiarize yourself with the manufacturer's installation instructions. The comprehensive guide is available here:

  ManualsLib



2. Selecting the Installation Location:

• Accessibility: Choose a location that allows easy access for maintenance and operation.

• Ventilation: Ensure adequate ventilation around the unit to prevent overheating.

• Structural Integrity: The mounting surface must support the weight of the heater when filled with water.

3. Mounting the Water Heater:

• Positioning: Place the heater on the selected surface, aligning it according to the manufacturer's specifications.

• Securing: Use appropriate fasteners to secure the heater firmly. Refer to the installation guide for specific mounting instructions.

  ManualsLib



4. Connecting the Flue System:

• Flue Installation: Install the flue as per the manufacturer's guidelines to ensure safe expulsion of exhaust gases.

• Sealing: Ensure all flue connections are sealed properly to prevent gas leaks.

5. Plumbing Connections:

• Cold Water Inlet: Connect the cold water supply to the inlet port using suitable fittings.

• Hot Water Outlet: Connect the hot water outlet to the distribution system.

• Pressure Relief Valve: Install the pressure relief valve as instructed to ensure safe operation.

6. Electrical Connections:

• Power Supply: Connect the heater to a suitable electrical supply, ensuring compliance with local electrical codes.

• Control Panel: Install the control panel in a convenient location and connect it to the heater as per the wiring diagram provided.

7. Gas Connections:

• Gas Supply: Connect the gas supply line to the heater, ensuring all connections are tight and leak-free.

• Testing: After installation, test all gas connections for leaks using a suitable leak detection solution.

8. Final Checks:

• System Testing: Turn on the water supply and check for leaks. Fill the heater with water before powering it on.

• Operational Test: Power on the heater and verify that it operates correctly in both gas and electric modes.
